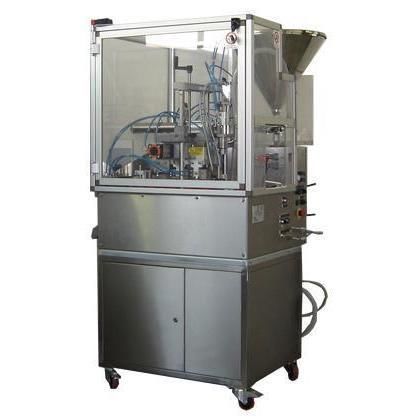

Tube filling and sealing machine RTS 15

automaticliquids

Overview
The RTS 15 tube filling and sealing machine is a stainless steel production unit designed for automatic filling, dosing and closure of polyethylene (PE), polyfoil and aluminium tubes. The machine combines volumetric dosing, hot-jaw sealing for plastic tubes and mechanical folding/stamping for metal tubes. It is mounted on an inox cabinet with swivel wheels and delivered pre-equipped for one tube format to be defined.

Components

• Single 28 L hopper in AISI 316L stainless steel (product-contact grade).
• Dosing group with mechanical variation.
• 300 ml volumetric doser with plunging injector.
• Hot-jaw closing group with Teflon-coated jaws.
• Hot-jaw closure with stamping and cutter for tube trimming; closing group water-cooled.
• Closure group for metal tubes: 4-blade folding unit for single/double fold and stamping unit.
• Automatic ejection device for filled tubes.
• Complete set of 14 PET tube guide bushings for one format.
• Integral safety guards compliant with CE standards.
• Tube counter.
• Number-holder clamp with 10 characters (0–9).

Additional information
Machine suitable for filling and sealing PE, polyfoil and aluminium tubes according to compatible formats. Supplied pre-equipped for a single format; format conversion kits and dosing ranges are available as required.

Technical specifications

• Hot-jaw mechanical output (plastic tubes): up to 1,000 pcs/h, depending on dosage.
• Mechanical output (metal tubes): up to 1,500 pcs/h, depending on dosage.
• Tube dimensions (PE / polyfoil): diameter 13–50 mm, height 50–250 mm.
• Tube dimensions (aluminium): diameter 13–40 mm, height 50–250 mm.
• Dosing ranges available: 3–40 cc; 7–120 cc; 15–250 cc; 30–350 cc. (300 ml volumetric doser with plunging injector included).
• Air consumption (for 1,000 pcs/h at 6 bar): 220 NL/min.
• Water consumption: 10 L/h.
• Frame: AISI 304 stainless steel; product-contact parts: AISI 316L.
• Electrical panel compliant with CE standards; main controls at 24 V.
