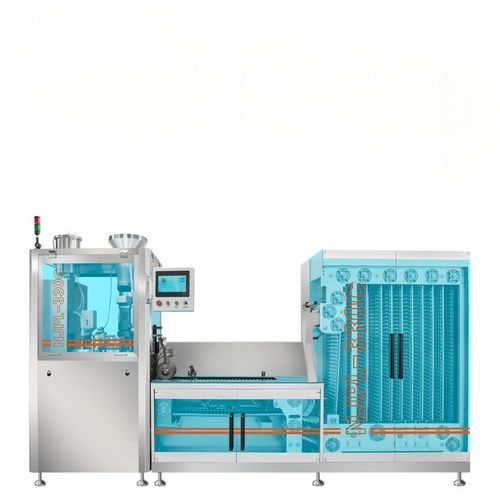

Automatic filling machine NJPL-330C

capsulefor liquidsfor viscous products

Overview
NJPL-330C is an automatic liquid capsule filling machine for hard capsules (size 00–3). Designed for pharmaceutical and nutraceutical production under cGMP environments, it processes up to 18,000 capsules/hour with ±1–2% dosing accuracy and an integrated leak-control process. The machine supports gelatin, HPMC, pullulan and plant-based capsules and handles a wide viscosity range using servo-driven ceramic dosing pumps and Schneider servo motors.

How it works
The system doses viscous liquids into pre-opened capsule halves via servo-controlled ceramic pumps, aligns capsule caps and bodies under controlled pressure, and seals them through patented thermal bonding on a turntable to provide hermetic closure and prevent leakage.

Main Features

• Production capacity up to 18,000 capsules/hour.
• ±1–2% dosing accuracy with detection to minimize leakage.
• Patented turntable thermal-bond sealing technology for hermetic seals.
• Schneider servo motors ensuring synchronized electro-mechanical control.
• Ceramic dosing pumps suitable for sticky and high-viscosity liquids.
• Fiber-optic detection for real-time rejection of misaligned, empty or faulty capsules.
• Modular mold design with rapid changeover (~15 minutes), compatible with gelatin, HPMC, pullulan and plant-based capsules.
• Handles broad viscosity range (~0.5–3,000 cP) and reduces API waste.

Main Parts

• Turntable
• Capsule sowing station
• Fiber-optic detection units
• Ceramic dosing pumps
• Automated rejection units
• Capsule transfer mechanisms
• Capsule presence detection
• Sealing station / sealing wheels
• Air drying system (DryGuard)
• Output conveyor
• Secondary rejection station

Sealing & Drying Technology
Dual-seal wheel process for HPMC and plant-based capsules (two-step temperature/pressure profile) and single heated wheel option for animal gelatin to avoid overheating. Directional DryGuard air-knife and controlled moisture set points accelerate drying while maintaining post-seal hardness and stability.

Validation & Compliance
Designed for cGMP production with validated dosing precision and third-party leak-tightness testing. Includes temperature-controlled filling zone and vibration-dampened mounts to protect dosing repeatability and process stability.

Technical specifications

• Production capacity: 18,000 pcs/h
• Applicable formats: liquid, granule, pellet
• Capsule size: 00–3
• Dosing accuracy: ±1–2%
• Filling technology: servo-driven ceramic dosing pumps
• Motors: Schneider servo motors
• Sealing: patented turntable thermal bonding; dual-wheel option for HPMC/plant capsules
• Drying: air drying system / DryGuard air-knife
• Viscosity handling: ~0.5–3,000 cP
• Power: 380/220 V 50Hz (customizable)
• Noise level: <65 dBA
• Mold changeover time: ~15 minutes (modular design)
• Operational reliability / yield: ≥99.8% via fiber-optic inspection and automated rejection
• Certifications: CE / cGMP / ISO (as stated)
• Delivery lead time: 15 days (subject to confirmation)
