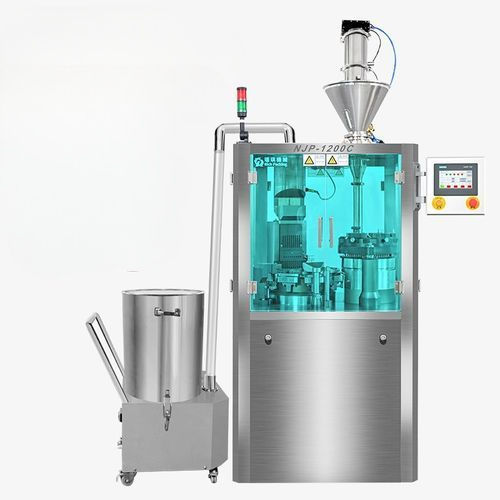

Automatic filling machine NJP-1200C

capsulefor tabletsliquids

Product Overview
Encapsuladora capsule filling machine is designed to fill hard gelatin or HPMC capsules with powders, granules, pellets or liquids. It increases production speed up to 72,000 capsules per hour and is suitable for large-scale pharmaceutical, nutraceutical and supplement manufacturing. Advanced dosing systems ensure consistent fill weight and reduce material waste. Integrated inspection and rejection systems support product quality and regulatory compliance.

Main Features

• Production capacity up to 72,000 capsules/hour for continuous large-scale operations
• Advanced dosing mechanisms for accurate and consistent fill weights
• Handles powders, granules, pellets and liquids (depending on configuration)
• Supports capsule sizes #000 to #5
• Integrated detection and rejection of defective capsules
• Modular design with mold/format change in approximately 15 minutes

Specification (short)
72,000 caps/h
Suitable for #000-#5 capsules
Modular design, change mold 15 mins

Technical Table
Production capacity: 72,000 pcs/h
Applicable product: Powder, granule, pellet, tablet (liquids configurable)
Power: 380/220V 50Hz (customizable)
Net weight: 1100 kg
Overall dimensions: 1100 × 910 × 2100 mm

Main Parts / Processes

• Capsule feeding and orientation
• Powder/granule filling and dosing
• Tamping and leveling
• Cap placement and sealing
• Bad-capsule detection and rejection
• Final inspection and discharge

How it works
The machine orients empty capsules, accurately doses the selected material into the capsule body, tamps and levels the fill to ensure uniform dosage, then places and secures the cap to produce finished capsules ready for downstream packaging.

Characteristics / Technical specifications

• Capacity: 72,000 capsules/hour
• Compatible capsule sizes: #000, #00, #0, #1, #2, #3, #4, #5
• Applicable materials: powders, granules, pellets, tablets (liquids configurable)
• Design: Modular; mold change approx. 15 minutes
• Power supply: 380/220 V 50 Hz (customizable)
• Net weight: 1100 kg
• Dimensions: 1100 × 910 × 2100 mm
