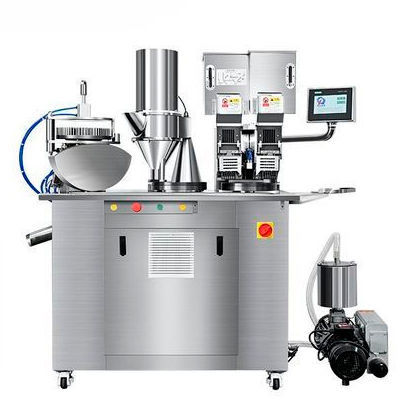

Semi-automatic filling machine CGNT-209

capsulefor tabletspowder

Product overview
CGNT-209 semi-automatic capsule filling machine is designed for pharmaceutical, nutraceutical and herbal production to accurately fill powders, granules, pellets or tablets into hard capsules. The compact double-row design supports continuous operation and straightforward integration into production lines.

Applications

• Pharmaceutical: filling medicines in capsule form, including custom dosages and combinations.
• Nutraceutical: filling dietary supplements such as vitamins, minerals, probiotics and botanical extracts for small to medium batches.
• Herbal & natural products: encapsulation of plant powders, extracts and blends for alternative medicine or organic product lines.

Key specification (summary)
Up to 40,000 pcs/h
Applicable capsule sizes: 000–5#
Applicable products: powder, granule, pellet, tablet

Main features

• Double-row capsule device with two capsule trays for high-speed continuous operation.
• Oxidized capsule plate for increased hardness and smooth surface to improve fill success rate.
• Flat-style bladder lock station using cylinder-start principle to reduce powder leakage during locking.

Main parts

• Siemens Touch Screen
• Capsule sowing
• Powder filling unit
• Press powder plate
• Capsule locking station
• Output conveyor

Technical table
Model: CGNT-209
Applicable capsule: 000, 00, 0, 1, 2, 3, 4, 5#
Applicable product: powder, granule, pellet, tablet
Voltage: 380/220V 50Hz (customizable)
Total power: 2.2 KW

Characteristics / technical specifications

• Model: CGNT-209
• Max output: up to 40,000 pcs/h
• Applicable capsule sizes: 000–5#
• Product types: powder, granule, pellet, tablet
• Voltage: 380/220V 50Hz (customizable)
• Total power consumption: 2.2 KW
• Double-row capsule trays for continuous high-speed operation
• Oxidized capsule plate for improved hardness and smoothness
• Flat bladder lock station with cylinder start to reduce powder leakage
