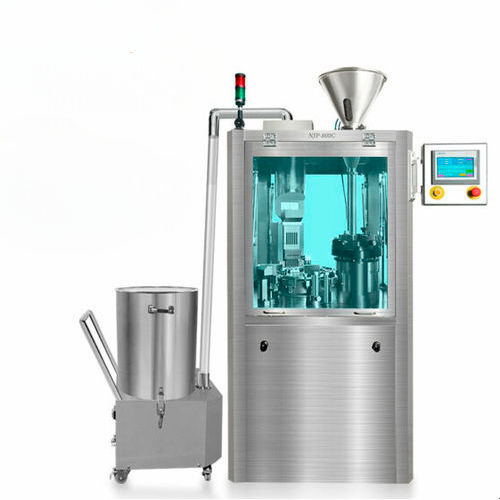

Fully-automatic filling machine NJP-800C

capsulepowderfor granulates

Overview
The NJP-800 automatic capsule filling machine performs capsule orientation and separation, precise dosing of powder/granules/pellets, cap-body locking and ejection of finished capsules in a continuous automated cycle. Engineered for pharmaceutical and nutraceutical production lines, it delivers consistent dosing accuracy while reducing manual handling and contamination risk.

Applications
Designed for high-volume pharmaceutical, nutraceutical and herbal supplement manufacturing. Suitable for integration with downstream blister packing or bottle-filling lines and compliant with cGMP production environments.

Main Features

• Fully automatic workflow: orientation, separation, filling, locking and discharge in one cycle
• High throughput suitable for mass production (up to 48,000 pcs/h)
• Modular construction for fast mold changeover (~15 minutes)
• Enclosed hygienic design to limit contamination
• Built for continuous 24/7 operation with low downtime
• cGMP compatible components and layout

NJP-800C Advantages

• Reduced labor costs through full automation
• High dosage accuracy and weight consistency
• Lower contamination risk from enclosed design
• Reliable continuous performance and fast ROI

How it works
The machine orients and separates empty capsules, doses powder/pellets into the bodies, reunites cap and body to lock capsules, inspects and ejects finished units—all within a single automated process.

Main Parts / Process Stations (summary)

• Working station
• Capsule feeding (orientation & separation)
• Filling station (dosing)
• Locking station (cap-body joining)
• Reject station for defective capsules

Technical Specifications

• Production capacity: 48,000 pcs/h
• Applicable product: powder, granule, pellet
• Capsule size compatibility: #000–5
• Power supply: 380/220V 50Hz (customizable)
• Net weight: 1000 kg
• Overall dimensions (L×W×H): 1510 × 1220 × 2050 mm
• Modular design: mold change in ~15 minutes
• Delivery time: 15 days
• Warranty: 3 years
