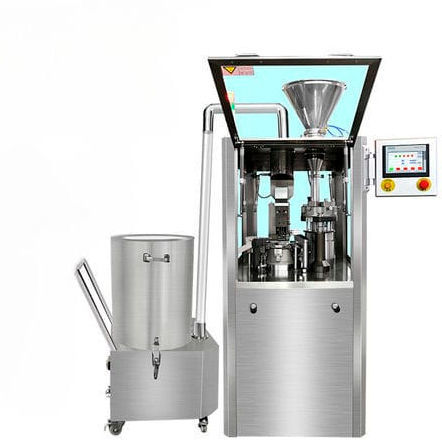

Fully-automatic filling machine NJP-400C

capsulefor granulatespowder

Product overview
The NJP 400 capsule filling machine is an automatic hard-capsule filler for powders, granules, pellets and small tablets. It is engineered for pharmaceutical and nutraceutical production, delivering up to 24,000 capsules per hour with filling accuracy >99%. Suitable for small to medium manufacturing sites, hospitals and R&D labs. Supports capsule sizes #000 to #5 and diverse formulations such as vitamins, medicines and supplements.

Compliance & Design
Designed to meet cGMP and CE requirements. Key design elements include a PLC touchscreen interface for operator control, modular and compact construction to simplify cleaning and maintenance, a closed-system layout to limit dust and cross-contamination, and 316L stainless-steel product-contact parts.

Main features

• Fully automatic encapsulation when integrated with a hollow capsule loader and vacuum powder loader
• Automatic capsule feeding and automatic powder replenishment to reduce manual labor
• High throughput up to 24,000 pcs/h with filling precision >99%
• Supports capsule sizes #000 to #5
• Compatible with powders, granules, pellets and small tablets
• PLC touchscreen control for simplified operation and reduced errors
• 316L stainless-steel product-contact parts and closed-system design to minimise contamination risk
• Modular design for easier cleaning and maintenance

Specification (table)
Production capacity: 24,000 pcs/h
Applicable product: powder, granule, pellet, small tablets
Power: 380/220V 50Hz (customizable)
Net weight: 600 kg
Overall dimensions: 1000 × 710 × 1900 mm
Delivery lead time: 15 days (typical)

How it works
When equipped with a hollow capsule loader and vacuum powder loader the machine operates continuously without manual intervention: it automatically feeds empty capsules and replenishes powder as levels fall. Automation reduces labor, supports cGMP workflows and enables data traceability and recording for quality assurance.

Main Parts

• Capsule seeding station
• Powder filling station
• Dosing disk and filling pins
• Scraper knife for powder recovery
• Capsule delivery conveyor and capsule comb

Technical specifications

• Model: NJP 400
• Production capacity: up to 24,000 pcs/h
• Applicable materials: powder, granule, pellet, small tablets
• Capsule sizes supported: #000 to #5
• Control: PLC touchscreen
• Filling accuracy: >99%
• Compliance: designed for cGMP and CE
• Construction: 316L stainless-steel product-contact parts
• Power supply: 380/220V 50Hz (customizable)
• Net weight: 600 kg
• Dimensions: 1000 × 710 × 1900 mm
• Typical delivery: 15 days
