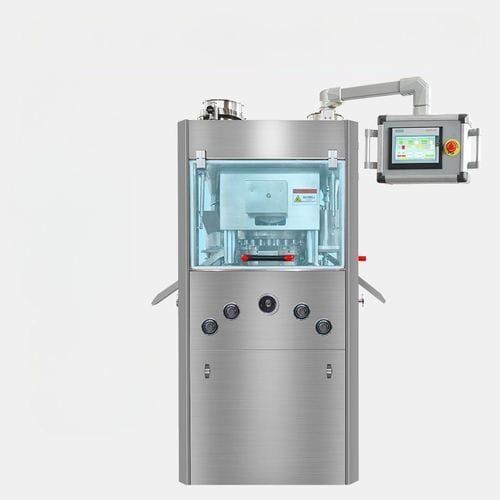

Rotary tablet press ZP-15E

double-layer

Overview
Two-layer tablet press ZP series (models ZP-15E and ZP-19E) is designed for producing multi-layer tablets in pharmaceutical, nutraceutical and chemical industries. It enables controlled layering of different formulations into a single tablet for combined-release, separation of incompatible ingredients or staged dissolution.

Applications

• Pharmaceutical tablets requiring multiple active ingredients or distinct layers
• Vitamins and supplements combining vitamins, minerals and other actives in one tablet
• Specialty chemical tablets that require layered structures to separate components until use
• Household multi-function tablets (e.g., layered dishwasher or cleaning tablets with staged release)

Working principle

• Feeding: Granules or powders are delivered into dedicated hoppers for each layer.
• Compression: A rotating turret with punches and dies compresses each layer sequentially to form a bonded multi-layer tablet.
• Ejection: Finished tablets are ejected from the dies as the turret rotates.
• Collection: Tablets are collected for inspection, dedusting and downstream packaging.

Specification (short)
Up to 45,600 pc/h
Max. diameter of tablet: 50 mm

Table - Model comparison

• ZP-15E — Max. pressure: 120 kN; Max. tablet Ø: 50 mm; Max. thickness: 25 mm; Max. capacity: 18,000 pc/h
• ZP-19E — Max. pressure: 100 kN; Max. tablet Ø: 40 mm; Max. thickness: 15 mm; Max. capacity: 45,600 pc/h

Main features
The ZP series is configured as a double-rotary two-layer tablet press with dedicated working sections for accurate feeding, layered compression and continuous high-throughput operation. Design emphasizes repeatable layer registration and easy changeover between formulations.

Main parts (captions shown on page)

• Force feeder
• Output / discharge
• Turntable (rotating turret)
• Tablet sample port

Caractéristiques / spécifications techniques

• Series / models referenced: ZP-15E, ZP-19E (ZP series)
• Max. pressure: ZP-15E 120 kN; ZP-19E 100 kN
• Max. diameter of tablet: ZP-15E 50 mm; ZP-19E 40 mm
• Max. tablet thickness: ZP-15E 25 mm; ZP-19E 15 mm
• Max. production capacity: ZP-15E 18,000 pc/h; ZP-19E 45,600 pc/h
• Typical industries: pharmaceutical, nutraceutical, chemical, household tablet production
• Working sections: feeding, compression, ejection, collection
