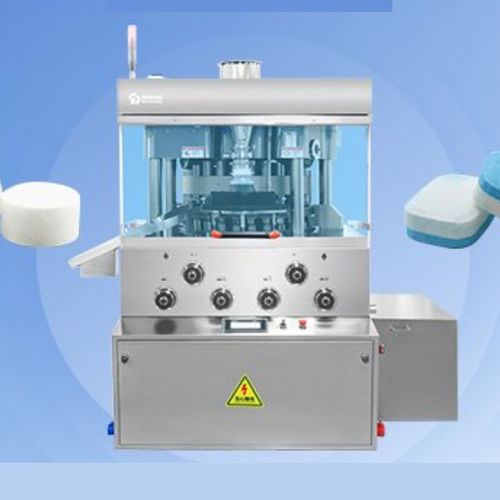

Triple-layer tablet press ZP-27T

automaticmanual

Product overview
400 kN Tablet Press Machine ZP-27T is engineered for high-capacity production of veterinary boluses and large-format tablets. It delivers a 400 kN main pressure with a 240 kN pre-pressure in a dual-stage compression process to improve density, reduce air entrapment and minimize capping for tablets up to 60 mm in diameter.

Highlights

• Detachable punch system for rapid mold changeovers and simplified maintenance
• Modular, heavy-duty construction suitable for high-throughput veterinary pharmaceutical lines
• Capable of handling challenging formulations; designed to comply with cGMP hygiene and wash-down requirements

Applications

• Veterinary medicine: high-dose boluses for cattle, horses and sheep
• Large-format tablets: disinfectant, chlorine, effervescent and industrial chemical tablets
• Nutritional supplements and water-treatment tablets for agricultural use

Main parts (illustrated)

• 3-layer force feeder
• Discharge port with dust collection
• Handwheel adjustment
• Demountable mold / detachable punch heads
• Siemens PLC control

Specification
Max output: 32,400 pcs/h
Max main pressure: 400 kN
Max pre-pressure: 240 kN
Max tablet diameter: 60 mm
Main motor power: 18.5 kW
Rotation speed range: 12 r/min

Technical specifications

• Model: ZP-27T
• Max main pressure: 400 kN
• Max pre-pressure: 240 kN
• Max tablet diameter: 60 mm
• Max output: 32,400 pcs/h
• Main motor power: 18.5 kW
• Rotation speed range: 12 r/min
• Detachable punch system for fast, low-cost changeovers
• Dual-stage compression (pre-compression + main compression) to deaerate powder and prevent capping
• Heavy-duty ejection cams and reinforced lower punch rails for reliable ejection of large tablets
• Designed for cGMP: stainless-steel contact parts and wash-down-capable design
