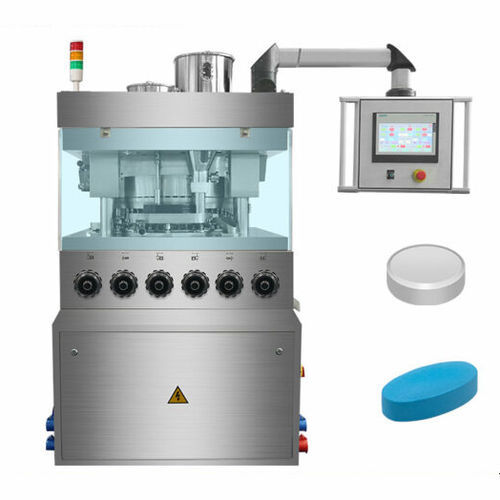

Electric pressing machine ZP-41/55D

motorizedfor pharmaceutical applicationsrotating table

Description
Rotary tablet press (GMP) compresses powders and granules into tablets with variable diameters and thicknesses. With customized tooling it produces round, triangular, core-rod and special-shaped tablets, suitable for pharmaceutical and nutraceutical production.

Specification

• Up to 260,000 tabs/h
• Max. diameter of tablet: 25 mm
• Max. pressure: 120 kN
• 15 Days Fast Delivery

Technical data table

• Max. Production Capacity: 260,000 pcs/h
• Max. Dia. of Tablet: 25 mm
• Power: 7.5 kW
• Voltage: 220v/380v 50Hz (customized)
• Dimension: 1600×1300×2160 mm

How tablet rotary press working?
The machine operates by feeding powder or granules into dies on a rotating turret; multiple punches compress the material into tablets under controlled pressure, ensuring repeatable results and compatibility with GMP production lines.

Main Features

• High production rates due to continuous operation and multiple punches, suitable for large-scale manufacturing.
• Ensures uniform tablet weight, thickness, and hardness through precise control of compression forces, providing consistent tablet quality.
• Easy to operate and minimizes material wastage through accurate dosing and compression, contributing to cost-effectiveness.
• Capable of handling various tablet sizes, shapes, and formulations for pharmaceutical and nutraceutical products.

Main Parts

• Filling Adjustment
• Tablet Pressing
• Turntable
• Tablet discharge from tablet press
• Double vacuum

Technical specifications

• Max. Production Capacity: 260,000 pcs/h
• Max. Diameter of Tablet: 25 mm
• Max. Pressure: 120 kN
• Power: 7.5 kW
• Voltage: 220v / 380v 50Hz (customized)
• Dimension (L×W×H): 1600 × 1300 × 2160 mm
