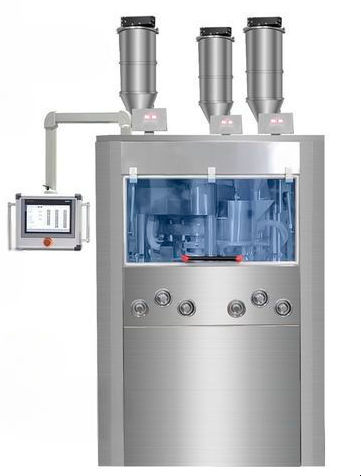

Rotary tablet press ZP-27D

triple-layer

Overview
Three-color rotary tablet press from the ZP series compresses powders, granules and pellets into multi-layer tablets with three distinct colors or layers. Designed for industrial pharmaceutical, nutraceutical, food and animal health production lines, it ensures controlled layer distribution and consistent tablet weight across high-speed runs.

Applications

• Pharmaceuticals: manufacturing multi-layer tablets combining different active ingredients or release profiles.
• Nutraceuticals: production of dietary supplements with distinct colors to differentiate formulations.
• Food: manufacturing candy tablets and color-design consumer products.
• Animal Health: veterinary tablets with multi-color indication for formulations or dosages.

Highlights / Key Points

• High-speed operation with models offering up to 395,000 pcs/h capacity.
• Capable of producing tablets up to 50 mm diameter (model dependent).
• Maximum compression force up to 150 kN (model dependent).
• Accurate color distribution and consistent tablet weight control.
• User-friendly control panel for straightforward parameter adjustment and monitoring.
• Easy maintenance and cleaning to minimize downtime.
• Typical delivery lead time: 15 days (as indicated).

Specification (summary)
Up to 395,000 pcs/h
Max. dia. of tablet 50 mm
Max. pressure 150 kN
15 Days Fast Delivery

Models Comparison (table)
Model | ZP-27D | ZP-45D | ZP-73D
Max. Dia. of Tablet | 50 mm | 20 mm | 11 mm
Max. Production Capacity | 87,480 pcs/h | 202,500 pcs/h | 395,000 pcs/h
Max. Pressure | 150 kN | 80 kN | 60 kN
Rotary Speed | 18 | 25 | 30

Main Features

• High-precision color distribution and consistent tablet weight control.
• Intuitive control interface for easy operation and troubleshooting.
• Versatile tooling to accommodate various tablet shapes and sizes.
• High efficiency through optimized high-speed operation while maintaining quality.
• Simple maintenance and cleaning procedures to reduce operational downtime.

Main Parts

• Siemens Touch Screen
• Force feeder
• Tablet discharge system (output)
• Vacuum outlet
• Handwheel for adjustment
• SEW high-power motor
• Transformer connector

Technical specifications

• Series: ZP series
• Maximum production capacity: up to 395,000 pcs/h (model dependent)
• Maximum tablet diameter: up to 50 mm (model dependent)
• Maximum pressure: up to 150 kN (model dependent)
• Rotary speeds (by model): ZP-27D: 18; ZP-45D: 25; ZP-73D: 30
• Typical delivery indication: 15 days
