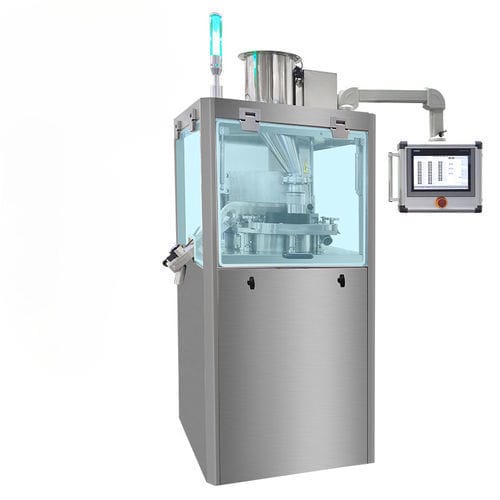

Rotary tablet press ZP-26D

automatic

Product Overview
The ZP-25D rotary tablet press (multi-station) compresses powders and granules into tablets with variable diameters and thicknesses. With customized tooling the machine produces round, triangular, ring and other special-shaped tablets, meeting pharmaceutical and nutraceutical production requirements.

Specification

• Production capacity: up to 330,000 pcs/h
• Max. tablet diameter: 25 mm
• Max. compression force: 150 kN
• Delivery time: 15 days

Technical Data
Max. Dia. of Tablet: 25 mm
Max. Production Capacity: 330,000 pcs/h
Power: 7.5 kW
Voltage: 380/220V 50Hz (customizable)
Size (L×W×H): 820 × 1100 × 1750 mm

How It Works?
The rotary press uses a rotating turret with multiple punches and dies. Material is fed, metered and compressed by upper and lower punches. Integrated monitoring of compression force and online rejection ensure uniform tablet weight and quality throughout continuous production.

Main Features

• Continuous multi-station compression for high throughput suitable for large-scale pharmaceutical production.
• Precise compression control for consistent tablet weight, thickness and hardness.
• Accurate dosing reduces material waste and improves yield.
• Flexible tooling supports multiple tablet shapes and formulations.

Main Parts

• Nodular cast iron turntable
• Compression force monitoring system
• Online rejection unit
• Force feeder (optional)
• Vacuum cleaning unit

Model Specifications

• Model: ZP-25D
• Max. tablet diameter: 25 mm
• Max. production capacity: 330,000 pcs/h
• Max. pressure: 150 kN
• Power: 7.5 kW
• Voltage: 380/220V 50 Hz (customizable)
• Size (L×W×H): 820 × 1100 × 1750 mm
• Delivery: 15 Days Fast Delivery
