Power cable T641-056 series
DINIP67stranded

Power cable - T641-056 series - SAB BROECKSKES GMBH & Co. KG - DIN / IP67 / stranded
Power cable - T641-056 series - SAB BROECKSKES GMBH & Co. KG - DIN / IP67 / stranded
Power cable - T641-056 series - SAB BROECKSKES GMBH & Co. KG - DIN / IP67 / stranded - image - 2
Add to favorites
Compare this product
Go to the SAB BROECKSKES GMBH & Co. KG website for more information

Characteristics

Type
power
Format
DIN
Protection
IP67
Configuration
stranded
Applications
for sensors, HV link
Material of the insulation
PUR-sheathed, FEP-insulated
Norms
IEC
Other characteristics
dual-channel
Temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Length

2,000 mm, 3,000 mm
(78.7 in, 118.1 in)

Description

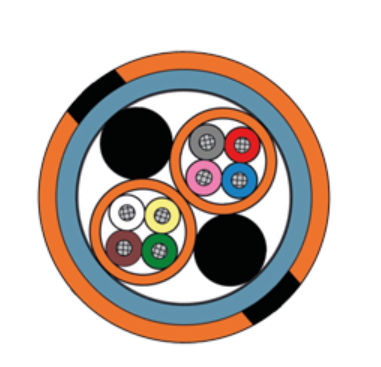

Safe HV analogue measurements with standard sensors combined with CSM measuring modules HV AD2 IF20, HV AD4 IF20 & HV AD4 IF1000 Issue of HV test certificate with reference to batch number due to optimum traceability. Optional: Test and repair of already used sensors on request. Pair sheath - FEP – orange acc. to RAL 2004 Sheath colour - orange with black vertical stripes Stranding - optimised in layers Outer diameter - approx. 7,3 mm Dielectric strength - 1000 V AC over orange bundle sheath

Catalogs

No catalogs are available for this product.

See all of SAB BROECKSKES GMBH & Co. KG‘s catalogs
