Connection electrical cable HV

powerLEMO

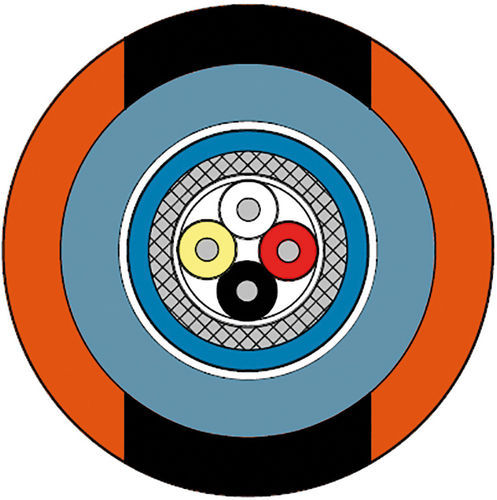

Product: 4-pole ¼-28 UNF female connector and Lemo Redel connector Application: - HV acceleration measurement together with CSM HV IEPE FL 100 measuring module Outstanding features: - scoop-proof* *please note the marked scoop-proof area! Additional information: - You can find more HV sensors in our HV brochure “E-Mobility High-voltage measurement technology” - Issue of HV test certificate with batch number for gapless traceability! - Optional: test + repair of already used sensors on request. Connector: - Lemo Redel male connector with orange kink protection sleeve and black protecting cap, 8 pole, C coded - 1000 V AC tension proof – IP 67 plugged Cable data: - Connection cable: HV IEPE sensor cable - Core insulation: PFA – red, white, black, yellow - Bundle sheath: PFA – blue acc. to RAL 5015 - Inner sheath: PUR – blue acc. to RAL 5024 - Outer sheath: PUR - Sheath colour: orange with black longitudinal stripes - Stranding: optimised in layers - Outer diameter: approx. 4.3 mm - Dialectric strength: 1000 V AC over second inner sheath - Temperature range: fixed laying: -50/+150 °C, flexible application: -40/+150 °C Sensor connection side: - Male connector: 4-pin ¼-28 UNF for the connection to a triaxial IEPE acceleration sensor (also with 4-pin 8-36 UNF and 4-pin M4,5) - Screen: bundle led out and insulated with shrinkable sleeve - Temperature range: bundle channel: -55°C / +250°C Tests: - Cable test: via single channel in water bath – 5000 V AC – 5 min – with reference to EN 50264-2-1 - Sensor test: routine test of harnessed connector with reference to the new standard for measuring devices 61010-1 as well as VDE indications in our in-house ball bath (testing equipment has been released by VDE). Control of safety to touch towards outside – 3000 V/1 min. AC Configuration examples: - Item no. T642-062-666: Connection cable length 3000 mm, channel 1:100 mm / ground:200 mm, 4-Pin ¼-28 UNF - Item no. T642-062-794: Connection cable length 6000 mm, channel 1:100 mm / ground:200 mm, 4-Pin ¼-28 UNF - Item no. T642-062-635: Connection cable length 3000 mm, channel 1:100 mm / ground:200 mm, 4-Pin 8-36 UNF Total and channel length can be led out individually. Technical characteristics / specifications: - Product: HV connection cable, 4-pole ¼-28 UNF female connector and Lemo Redel connector - Application: HV acceleration measurement with CSM HV IEPE FL 100 measuring module - Connector: Lemo Redel male, 8 pole, C coded, 1000 V AC tension proof, IP67 - Cable: HV IEPE sensor cable, PFA and PUR insulation, orange with black stripes, approx. 4.3 mm diameter - Temperature range: fixed -50/+150°C, flexible -40/+150°C, bundle channel -55/+250°C - Dialectric strength: 1000 V AC over second inner sheath - Tests: Cable test 5000 V AC/5 min (EN 50264-2-1), Sensor test 3000 V/1 min AC (IEC 61010-1, VDE) - Configuration: Multiple lengths and connector types available
