Thermocouple electrical cable T1410 seriespowerIP67rugged
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- IP67, rugged
- Configuration
- paired
- Applications
- HV link
- Material of the insulation
- PUR-sheathed, FEP-insulated
- Color of the insolation
- green, white
- Other characteristics
- connection, for thermocouples
- Temperature
Min.: -50 °C
(-58 °F)Max.: 150 °C
(302 °F)- Length
2,400 mm, 3,000 mm
(94.5 in, 118.1 in)
Description
Safe HV temperature measurement in HV environments
• contact protection of individual channels
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.

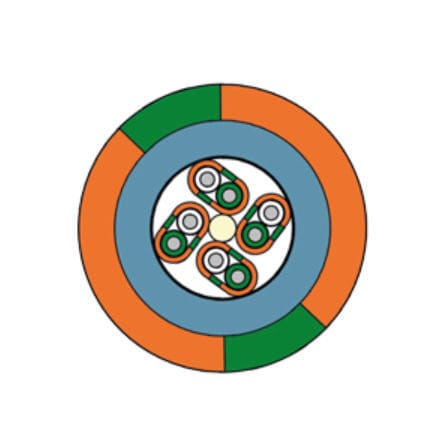

Connection cable -
HV thermo cable type K
Pair sheath -
FEP – orange with green vertical stripes
Inner sheath -
FEP – blue acc. to RAL 5024
Sheath colour -
orange with green vertical stripes
Stranding -
paired construction (for EMC)
Outer diameter -
approx. 6,1 mm
Dielectric strength -
1000 V AC over single channel
