Thermocouple electrical cable T141-05 series
powerinsulatedIP67

Thermocouple electrical cable - T141-05 series - SAB BROECKSKES GMBH & Co. KG - power / insulated / IP67
Thermocouple electrical cable - T141-05 series - SAB BROECKSKES GMBH & Co. KG - power / insulated / IP67
Thermocouple electrical cable - T141-05 series - SAB BROECKSKES GMBH & Co. KG - power / insulated / IP67 - image - 2
Add to favorites
Compare this product
Go to the SAB BROECKSKES GMBH & Co. KG website for more information

Characteristics

Type
power
Protection
insulated, IP67
Configuration
stranded, paired
Applications
HV link
Material of the insulation
PUR-sheathed
Color of the insolation
green, white
Other characteristics
connection, for thermocouples
Temperature

Min.: -50 °C
(-58 °F)

Max.: 150 °C
(302 °F)

Length

2,400 mm, 3,000 mm
(94.5 in, 118.1 in)

Description

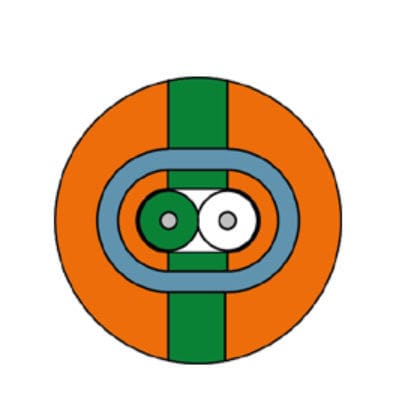

Safe HV temperature measurement in HV environments • contact protection over single channel Issue of HV test certificate with reference to batch number due to optimum traceability. Optional: Test and repair of already used sensors on request. Connection cable - HV thermo cable type K Insulation - FEP – green and white Pair sheath - FEP – orange with green vertical stripes Inner sheath - FEP – blue acc. to RAL 5024 Sheath colour: - orange with green vertical stripes Outer diameter - approx. 3,4 mm Dielectric strength - 1000 V AC over single channel
