Extension cable T141-0 series

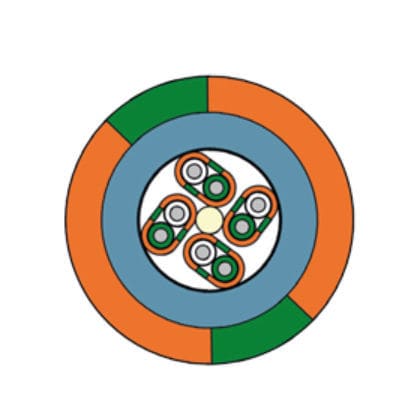

Extension of 4- or 1-channel high voltage sensors type K • contact protection over all components Issue of HV test certificate with reference to batch number due to optimum traceability. Optional: Test and repair of already used sensors on request. Connection cable - HV thermo cable type K Insulation - FEP – green and white Pair sheath - FEP – orange with green vertical stripes Inner sheath - FEP – blue acc. to RAL 5024 Outer sheath - PUR Sheath colour - orange with green vertical stripes Outer diameter - 4-channel: approx. 6,1 mm 1-channel: approx. 3,4 mm Dielectric strength - 4-channel: 1000 V AC 1-channel: 1000 V AC over single channel
