Safe HV temperature measurement with ambient temperatures up to + 200°C (for example in hardening processes of impregnated motor windings)
• small cable diameter for narrow spaces
Issue of HV test certificate with reference to batch number due to optimum traceability
Optional: Test and repair of already used sensors on request.

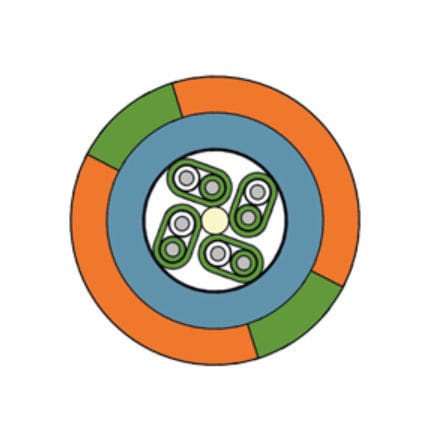

Connection cable -
HV thermo cable type K HT
Pair sheath -
PFA – green acc. to RAL 6018
Inner sheath -
FEP – blue acc. to RAL 5024
Outer sheath -
Besilen®
Sheath colour -
orange with green vertical stripes
Outer diameter -
approx. 4,4 mm
Dielectric strength -
1000 V AC over inner sheath
