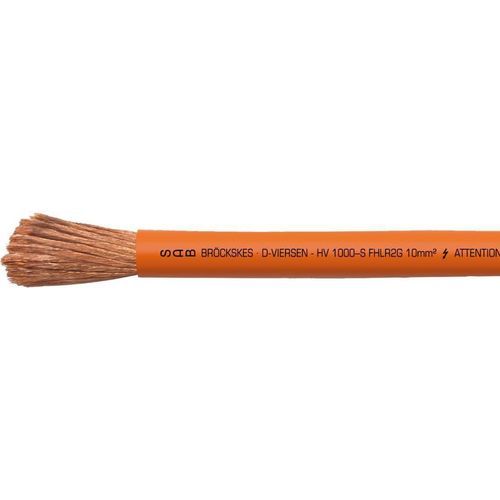

Power cable HV 1000 - S

high-temperaturechemical-resistantcopper

Application
High-voltage cable with silicone insulation, specifically designed for electric and hybrid vehicles. Used in the powertrain, batteries, inverters and power electronics.

Outstanding features

• very flexible
• extremely high mechanical strength
• high protection against environmental influences
• halogen-free
• Operating range from -40°C to +180°C
• PFAS-free

Additional information
Certifications

• DIN EN 13602
• LV 216-2
• DIN EN 50525
• DIN EN 50363
• DIN EN 60811

Variants
On request also available as a shielded version: HV 1000 – SCS FHLR2GCB2G.

Construction
Conductor: bare copper strands, extra fine wires, CU ETP-1 acc. to EN 13602, max. 0,21 mm single-wire diameter
Insulation: silicone rubber
Sheath colour: orange (RAL 2003)

Technical data
Type: FHRLR2G
Standard basis dimensions: LV 112-1 + LV 216-2
Operating Voltage: 600 V AC / 1000 V DC
Testing voltage: sparktest 8000 V
Min. bending radius: fixed laying: 2 x d; flexible application: 4 x d
Temperature range: -40/+180 °C
Halogen-free: acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance: acc. to ISO 19642
Changing climate test: acc. to ISO 19642
Ozone resistance: acc. to ISO 19642
Media resistance: acc. to ISO 19642
Flexibility: very good
Absence of harmful substances: acc. to RoHS directive of the European Union

Dimensions (HV 1000 - S — LV 112-1 + LV 216-2)
item no. | Nominal cross section | Outer-ø | Copper figure | Cable weight ≈ | Ohmic resistance at 20°C max.
L39162127 | 10,00 mm² | 6,0 -0,6 mm | 96,0 kg/km | 106 kg/km | 1,91 Ω/km
L39162137 | 16,00 mm² | 7,2 -0,6 mm | 153,6 kg/km | 163 kg/km | 1,21 Ω/km
L37162147 | 25,00 mm² | 8,8 -0,6 mm | 240,0 kg/km | 244 kg/km | 0,78 Ω/km
L39162157 | 35,00 mm² | 10,5 -0,7 mm | 336,0 kg/km | 349 kg/km | 0,554 Ω/km
L39162167 | 50,00 mm² | 12,2 -0,7 mm | 480,0 kg/km | 497 kg/km | 0,386 Ω/km
L39162177 | 70,00 mm² | 14,4 -1,4 mm | 672,0 kg/km | 719 kg/km | 0,227 Ω/km
L39162187 | 95,00 mm² | 17,2 -1,4 mm | 912,0 kg/km | 1935 kg/km | 0,206 Ω/km
L39162197 | 120,00 mm² | 19,7 -1,8 mm | 1152,0 kg/km | 1183 kg/km | 0,161 Ω/km

Characteristics / technical specifications

• Conductor: bare copper strands, extra fine wires, CU ETP-1 acc. to EN 13602, max. 0,21 mm single-wire diameter
• Insulation: silicone rubber
• Sheath colour: orange (RAL 2003)
• Type: FHRLR2G
• Operating voltage: 600 V AC / 1000 V DC
• Testing voltage: sparktest 8000 V
• Temperature range: -40/+180 °C
• Min. bending radius: fixed 2 x d, flexible 4 x d
• Halogen-free: acc. to IEC 60754-1 + VDE 0482-754-1
• Fire performance / tests: acc. to ISO 19642
• Flexibility: very good
• Absence of harmful substances: acc. to RoHS directive
