Power cable HV 1500 - SCP

weather-resistantwith copper screenoil-resistant

Application
High-voltage cable with silicone insulation, designed for electric and hybrid vehicles for use in powertrains, batteries, inverters and power electronics.

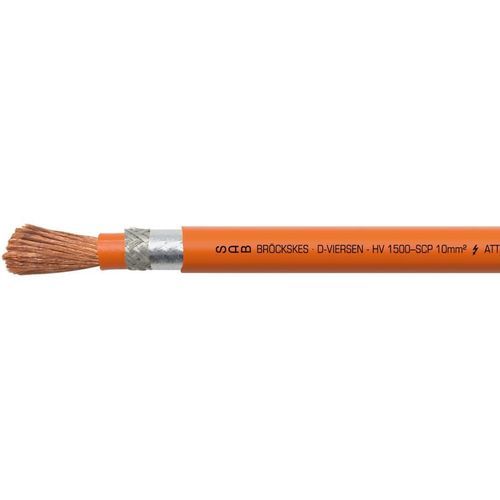

Marking example
Example: SAB BRÖCKSKES · D-VIERSEN · HV 1500–SCP 10mm² ATTENTION HIGH VOLTAGE MAX 1000 V AC / 1500 V DC

Outstanding features

• extremely high mechanical strength
• good EMC characteristics
• very flexible
• weather resistant
• halogen-free
• operating range from -50°C to +125°C (limited time)
• PFAS-free

Certifications / Standards (construction, materials and tests with reference to)

• DIN EN 13602
• ISO 19642
• DIN EN 50525
• DIN EN 50363
• DIN EN 50620
• DIN EN 60811

Construction
Conductor: bare copper strands, extra fine wires, CU ETP-1 acc. to EN 13602, max. 0,21 mm single-wire diameter
Insulation: silicone rubber
Screen: tinned copper braiding; optical coverage ≥ 85%; aluminum-laminated foil, metal side on the inside
Sheath material: TPE-U
Sheath colour: orange (RAL 2003)

Technical data
Standard basis dimensions: ISO 19642-5
Operating voltage: 1000 V AC / 1500 V DC
Testing voltage: spark test 8000 V; core/screen 10000 V
Min. bending radius: fixed laying: 3 x d; flexible application: 5 x d
Temperature range: -50°C to +90°C (continuous); limited time of use up to +125°C (2000 h)
Halogen-free: according to IEC 60754-1 + VDE 0482-754-1
Fire performance: flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance: very good (TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2)
UV and weather resistance: acc. to HD 605
Ozone resistance: acc. to DIN EN 50396
Absence of harmful substances: acc. to RoHS directive of the European Union

HV 1500 - SCP (Dimensions according to ISO 19642)
item no.; Nominal cross section; Approx. core-ø; Outer-ø; Copper figure; Cable weight ≈ (core); Cable weight ≈ (with screen); Ohmic resistance at 20°C max.
L39151327; 10,00 mm²; 6,0 -0,7 mm; 8,1 -0,6 mm; 134,7 kg/km; 153 kg/km; 1,91 Ω/km
L39151337; 16,00 mm²; 7,2 -0,8 mm; 9,6 -0,6 mm; 200,8 kg/km; 224 kg/km; 1,21 Ω/km
L39151347; 25,00 mm²; 8,7 -0,8 mm; 11,3 -0,6 mm; 311,1 kg/km; 327 kg/km; 0,78 Ω/km
L39151357; 35,00 mm²; 10,4 -1,0 mm; 13,2 -0,6 mm; 420,6 kg/km; 451 kg/km; 0,554 Ω/km
L39151367; 50,00 mm²; 12,2 -1,2 mm; 15,2 -0,6 mm; 581,8 kg/km; 635 kg/km; 0,386 Ω/km
L39151377; 70,00 mm²; 14,4 -1,4 mm; 17,4 -0,8 mm; 794,6 kg/km; 847 kg/km; 0,227 Ω/km
L39151387; 95,00 mm²; 16,7 -1,4 mm; 19,9 -0,8 mm; 1095,9 kg/km; 1137 kg/km; 0,206 Ω/km

Characteristics / technical specifications

• Model: HV 1500 - SCP
• Brand: SAB BRÖCKSKES
• Insulation: silicone rubber
• Sheath: TPE-U, orange (RAL 2003)
• Overall screen: tinned copper braiding + aluminum-laminated foil (metal inside), optical coverage ≥ 85%
• Rated voltage: 1000 V AC / 1500 V DC
• Test voltages: spark test 8000 V; core/screen 10000 V
• Temperature range: -50 °C to +90 °C (continuous), up to +125 °C limited time (2000 h)
• Bending radius: fixed 3 x d, flexible 5 x d
• Halogen-free, flame retardant and self-extinguishing per standards
• Very good oil, UV, weather and ozone resistance
• Conductor material: extra fine copper strands CU ETP-1
