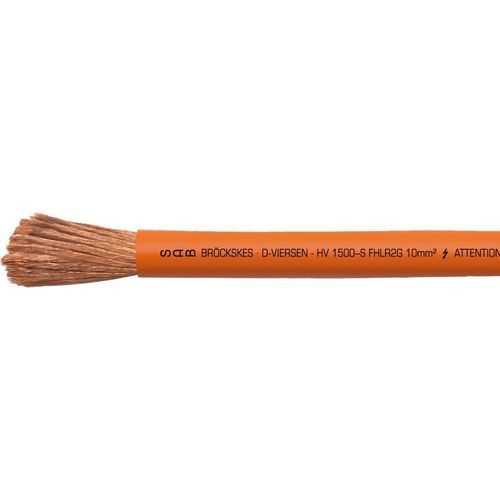

Power cable HV 1500 - S

copperfor the automotive industryfor electric vehicles

Application
High-voltage cable with silicone insulation specifically designed for electric and hybrid vehicles. Intended for use in powertrains, batteries, inverters and power electronics.

Outstanding features

• very flexible
• extremely high mechanical strength
• high protection against environmental influences
• halogen-free
• operating range -40 °C to +180 °C
• PFAS-free

Additional information
Certifications — construction, materials and tests referenced to standards:

• DIN EN 13602
• ISO 19642
• DIN EN 50525
• DIN EN 50363
• DIN EN 60811

Construction
Conductor: bare copper strands, extra-fine wires, CU ETP-1 acc. to EN 13602, max. 0.21 mm single-wire diameter
Insulation: silicone rubber
Sheath colour: orange (RAL 2003)

Technical data
Type: FHLR2G
Standard basis dimensions: ISO 19642-5
Operating voltage: 1000 V AC / 1500 V DC
Testing voltage: sparktest 8000 V
Min. bending radius: fixed laying: 2 × d; flexible application: 4 × d
Temperature range: -40 / +180 °C
Halogen-free: acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance: acc. to ISO 19642
Changing climate test: acc. to ISO 19642
Ozone resistance: acc. to ISO 19642
Media resistance: acc. to ISO 19642
Flexibility: very good
Absence of harmful substances: acc. to RoHS directive of the European Union

HV 1500 - SCP (dimensions acc. to ISO 19642)
item no.; Nominal cross section; Outer-ø; Copper figure; Cable weight ≈; Ohmic resistance at 20°C max.
L39151327; 10.00 mm²; 6.0 -0.7 mm; 96.0 kg/km; 106 kg/km; 1.91 Ω/km
L39151337; 16.00 mm²; 7.2 -0.8 mm; 153.6 kg/km; 163 kg/km; 1.21 Ω/km
L39151347; 25.00 mm²; 8.7 -0.8 mm; 240.0 kg/km; 244 kg/km; 0.78 Ω/km
L39151357; 35.00 mm²; 10.4 -1.0 mm; 336.0 kg/km; 349 kg/km; 0.554 Ω/km
L39151367; 50.00 mm²; 12.2 -1.2 mm; 480.0 kg/km; 497 kg/km; 0.386 Ω/km
L39151377; 70.00 mm²; 14.4 -1.4 mm; 672.0 kg/km; 719 kg/km; 0.227 Ω/km
L39151387; 95.00 mm²; 16.7 -1.4 mm; 912.0 kg/km; 1935 kg/km; 0.206 Ω/km

Characteristics / technical specifications

• Type: FHLR2G
• Model: HV 1500 - S
• Insulation material: silicone rubber
• Sheath colour: orange (RAL 2003)
• Operating voltage: 1000 V AC / 1500 V DC
• Testing voltage: sparktest 8000 V
• Temperature range: -40 °C to +180 °C
• Min. bending radius: fixed 2×d; flexible 4×d
• Halogen-free (IEC 60754-1)
• PFAS-free
• Absence of harmful substances: RoHS compliant
