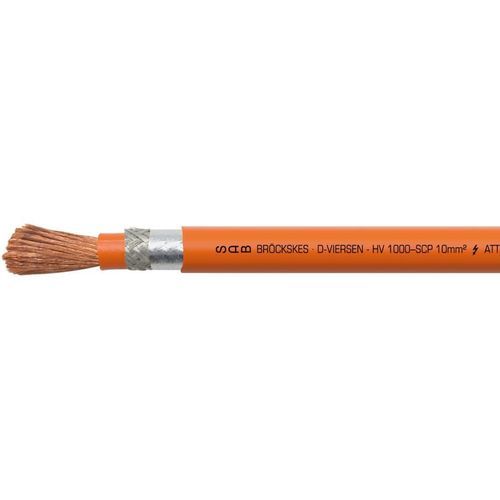

Power cable HV 1000 - SCP

oil-resistantflame-retardantwith copper screen

Application
High-voltage cable with silicone insulation, specifically designed for electric and hybrid vehicles. Used in the powertrain, batteries, inverters and power electronics.

Outstanding features

• extremely high mechanical strength
• good EMC characteristics
• very flexible
• weather resistant
• halogen-free
• operating range from -50°C to +125°C
• PFAS-free

Additional information - Certifications

• DIN EN 13602
• LV 216-2
• DIN EN 50525
• DIN EN 50363
• DIN EN 50620
• DIN EN 60811

Construction
Conductor: bare copper strands, extra fine wires, CU ETP-1 acc. to EN 13602, max. 0,21 mm single-wire diameter
Insulation: silicone rubber
Screen: tinned copper braiding; optical coverage ≥ 85%; aluminum-laminated foil with the metal side on the inside
Sheath material: TPE-U
Sheath colour: orange (RAL 2003)

Technical data
Standard basis dimensions: LV 216-2
Operating voltage: 600 V AC / 1000 V DC
Testing voltage: spark test 8000 V; core/screen 5000 V
Min. bending radius: fixed laying: 3 x d; flexible application: 5 x d
Temperature range: -50/+90 °C; limited time of use: +125 °C (2000 h)
Halogen-free: acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance: flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance: very good (TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2)
UV- and weather resistance: acc. to HD 605 and DIN EN 50396
Absence of harmful substances: acc. to RoHS directive of the European Union

Dimensions (selection)
Headers: item no. | Nominal cross section | Approx. core-ø | Outer-ø | Copper figure | Cable weight ≈ | Ohmic resistance at 20°C max.
L39162327 | 10,00 mm² | 6,0 -0,6 mm | 8,8 -0,6 mm | 134,8 kg/km | 164 kg/km | 1,91 Ω/km
L39162337 | 16,00 mm² | 7,2 -0,6 mm | 10,2 -0,6 mm | 201,0 kg/km | 235 kg/km | 1,21 Ω/km
L39162347 | 25,00 mm² | 8,8 -0,6 mm | 12,2 -0,6 mm | 321,6 kg/km | 354 kg/km | 0,78 Ω/km
L39162357 | 35,00 mm² | 10,5 -0,7 mm | 14,4 -0,6 mm | 433,5 kg/km | 488 kg/km | 0,554 Ω/km
L39162367 | 50,00 mm² | 12,2 -0,7 mm | 15,8 -0,6 mm | 581,2 kg/km | 623 kg/km | 0,386 Ω/km
L39162377 | 70,00 mm² | 14,4 -1,4 mm | 18,2 -0,8 mm | 794,6 kg/km | 866 kg/km | 0,227 Ω/km
L39162387 | 95,00 mm² | 17,2 -1,4 mm | 20,9 -0,8 mm | 1097,0 kg/km | 1167 kg/km | 0,206 Ω/km
L39162397 | 120,00 mm² | 19,7 -1,8 mm | 23,5 -1,0 mm | 1354,0 kg/km | 1440 kg/km | 0,161 Ω/km
Other dimensions and colours are possible on request.

Characteristics / technical specifications

• Model: HV 1000 - SCP
• Brand: SAB BRÖCKSKES
• Conductor: extra-fine bare copper strands (CU ETP-1)
• Insulation: silicone rubber
• Sheath: TPE-U, orange (RAL 2003)
• Overall screen: tinned copper braiding + aluminum-laminated foil
• Operating voltage: 600 V AC / 1000 V DC
• Testing: spark test 8000 V; core/screen 5000 V
• Temperature range: -50°C to +90°C (continuous), up to +125°C limited time (2000 h)
• Min. bending radius: fixed 3 x d; flexible 5 x d
• Standards: LV 216-2, DIN EN 13602, DIN EN 50525, DIN EN 50363, DIN EN 50620, DIN EN 60811
• Halogen-free and PFAS-free; flame retardant and self-extinguishing; very good oil, UV and weather resistance
