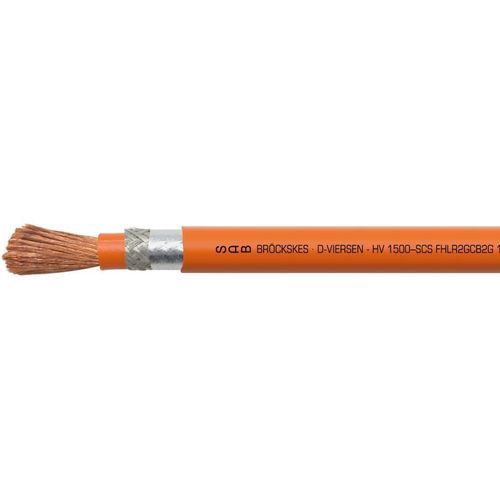

Power cable HV 1500 - SCS

with copper screenweather-resistantcopper

Marking example
SAB BRÖCKSKES · D-VIERSEN · HV 1500–SCS FHLR2GCB2G 10mm² ATTENTION HIGH VOLTAGE MAX 1000 V AC / 1500 V DC

Application
High-voltage cable with silicone insulation, specifically designed for electric and hybrid vehicles. Used in the powertrain, batteries, inverters and power electronics.

Outstanding features

• very flexible
• good EMC characteristics
• weather resistant
• halogen-free
• Operating range from -40°C to +180°C
• PFAS-free

Additional information - Certifications
Construction, materials and tests with reference to:

• DIN EN 13602
• ISO 19642
• DIN EN 50525
• DIN EN 50363
• DIN EN 60811

In individual cases, the specific application must be agreed with S Bröckskes. On request also available as a unshielded version: HV 1500 – S FHLR2G

Construction
Conductor: bare copper strands, extra fine wires, CU ETP-1 acc. to EN 13602, max. 0,21 mm single-wire diameter
Insulation: silicone rubber
Screen: tinned copper braiding; optical coverage ≥ 85%; aluminum-laminated foil with the metal side on the inside
Sheath material: silicone rubber
Sheath colour: orange (RAL 2003)

Technical Data
Type: FHLR2GCB2G
Standard basis dimensions: ISO 19642-5
Operating voltage: 1000 V AC / 1500 V DC
Testing voltage: spark test 8000 V; core/screen 10000 V
Min. bending radius: fixed laying: 3 x d; flexible application: 5 x d
Temperature range: -40/+180 °C
Halogen-free: acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance: acc. to ISO 19642
Changing climate test: acc. to ISO 19642
Ozone resistance: acc. to ISO 19642
Media resistance: acc. to ISO 19642
Flexibility: very good
Absence of harmful substances: acc. to RoHS directive of the European Union

HV 1500 - SCS (Dimensions according to ISO 19642)
item no.: L39151227; Nominal cross section: 10,00 mm²; Approx. core-ø: 6,0 -0,7 mm; Outer-ø: 8,1 -0,6 mm; Copper figure: 134,7 kg/km; Cable weight ≈: 153 kg/km; Ohmic resistance at 20°C max.: 1,91 Ω/km
item no.: L39151237; Nominal cross section: 16,00 mm²; Approx. core-ø: 7,2 -0,8 mm; Outer-ø: 9,6 -0,6 mm; Copper figure: 200,8 kg/km; Cable weight ≈: 224 kg/km; Ohmic resistance at 20°C max.: 1,21 Ω/km
item no.: L39151247; Nominal cross section: 25,00 mm²; Approx. core-ø: 8,7 -0,8 mm; Outer-ø: 11,3 -0,6 mm; Copper figure: 311,1 kg/km; Cable weight ≈: 327 kg/km; Ohmic resistance at 20°C max.: 0,78 Ω/km
item no.: L39151257; Nominal cross section: 35,00 mm²; Approx. core-ø: 10,4 -1,0 mm; Outer-ø: 13,2 -0,6 mm; Copper figure: 420,6 kg/km; Cable weight ≈: 451 kg/km; Ohmic resistance at 20°C max.: 0,554 Ω/km
item no.: L39151267; Nominal cross section: 50,00 mm²; Approx. core-ø: 12,2 -1,2 mm; Outer-ø: 15,2 -0,6 mm; Copper figure: 581,8 kg/km; Cable weight ≈: 635 kg/km; Ohmic resistance at 20°C max.: 0,386 Ω/km
item no.: L39151277; Nominal cross section: 70,00 mm²; Approx. core-ø: 14,4 -1,4 mm; Outer-ø: 17,4 -0,8 mm; Copper figure: 794,6 kg/km; Cable weight ≈: 847 kg/km; Ohmic resistance at 20°C max.: 0,227 Ω/km
item no.: L39151287; Nominal cross section: 95,00 mm²; Approx. core-ø: 16,7 -1,4 mm; Outer-ø: 19,9 -0,8 mm; Copper figure: 1095,9 kg/km; Cable weight ≈: 1137 kg/km; Ohmic resistance at 20°C max.: 0,206 Ω/km

caractéristiques / spécifications techniques

• Product type: FHLR2GCB2G
• Commercial model: HV 1500 - SCS
• Conductor: bare copper strands, extra fine wires, CU ETP-1, max. single-wire Ø 0,21 mm
• Insulation / Sheath: silicone rubber
• Screen: tinned copper braiding + aluminum-laminated foil (metal side inside), optical coverage ≥ 85%
• Sheath colour: orange (RAL 2003)
• Operating voltage: 1000 V AC / 1500 V DC
• Testing voltage: spark test 8000 V; core/screen 10000 V
• Temperature range: -40 °C to +180 °C
• Min. bending radius: fixed 3 x d; flexible 5 x d
• Standards / Fire / Aging: ISO 19642, DIN EN 13602, DIN EN 50525, DIN EN 50363, DIN EN 60811
• Halogen-free and RoHS-compliant; absence of harmful substances declared
• PFAS-free
• Available in multiple nominal cross sections (10 mm² to 95 mm²) with detailed dimensions and electrical data
