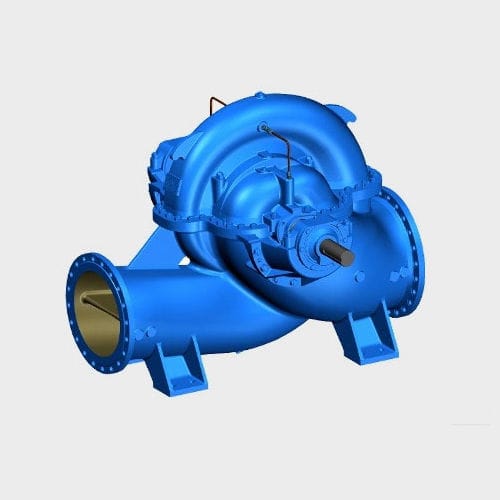

Water pump HS (V)

oilelectriccentrifugal

HS(V)type series pump is new generation single stage double suction split casing centrifugal pump that is designed and produced by foreign advanced manufacturing technology of 1990’s 20th century. Application Area HS(V) type series pump is mainly used in water supply plants,power stations,industry water supply system,air conditioning circulation water,building water supply,irrigation,pump stations,and shipping industry. Performance Range Inlet diameter：125～1600 mm Outlet diameter：80～1400 mm Structural Characteristics 1、Compact structure Nice appearance,good stability and easy installation. 2、Operate steadily The double suction impeller which is optimum and designed by computer,and has a large inlet flowing area.The clapboard is set at packing box of inlet flow passage,it makes no vortex at inlet of pump.It adopts resin sand moulding and high quality cast technology to make the inner surface of pump casing and the surface of impeller smoother than before.Through above measures,we make pump operate with no vortex,operate smoother and have remarkable erosion-resistant ability and high efficiency. 3、Bearing Excellent bearing is used to assure the steady operation,low noise,long service life.Grease lubrication and closed structure is used.If thin oil lubrication structure is needed,a constant level oil cup shall be equipped. 4、Shaft seal Mechanical seal or packing seal shall be used.These two kinds of seal are all installed in the removable packing box,which is convenient to assembly and maintenance.The packing gland of pump is removable and open,which assures enough room for maintenance and repair.
