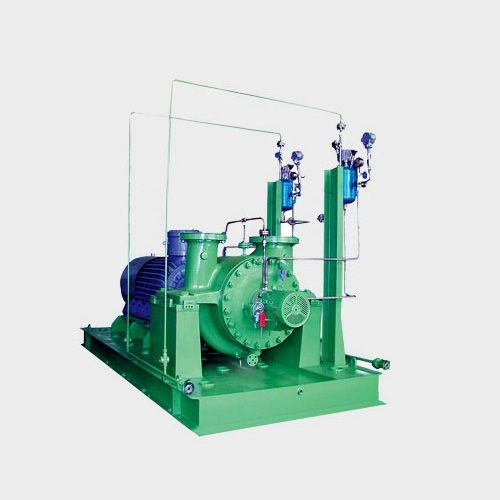

Ammonia pump ASP5320
oilwith electric motorcentrifugal

ammonia pump
ammonia pump
Add to favorites
Compare this product


Characteristics

Fluid
ammonia, oil
Operation
with electric motor
Technology
centrifugal
Mobility
stationary
Domain
industrial, chemical, refinery
Applications
cooling, transport, chemical process
Other characteristics
standard, double, heavy-duty, large, radial, rotary, seal
Flow

Max.: 3,500 m³/h
(123,601.33353 ft³/h)

Min.: 5 m³/h
(176.57333 ft³/h)

Pressure

11 MPa, 15 MPa, 35 MPa

Head

Max.: 400 m
(1312'04" )

Min.: 0 m
(0'00" )

Fluid temperature

Max.: 450 °C
(842 °F)

Min.: -80 °C
(-112 °F)

Description

ASP5320 series heavy-duty petroleum chemical process pumps are horizontal, radial, single, two or three, center and double support layout. According to API 610, the standard of oil, heavy chemical and natural gas industry centrifugal pump is designed, and the design requirements of the eighth and ninth edition are met. Sealing system completely according to API682 second edition of the centrifugal pump and the rotary pump shaft seal system design, with various forms of sealing and flushing cooling scheme, suitable for all kinds of complicated conditions, wide use. Range of application Widely used in petroleum refining, petrochemical industry, coal chemical industry, oil transportation, gas processing, offshore drilling equipment and other industrial processes, can transport all kinds of clean or with particles of neutral or has a strong corrosive medium. The typical application in modern oil refinery transportation of crude oil and high temperature tower pumps and the need for continuous operation, can also be used as a large synthetic ammonia device for the poor liquid pump and the rich liquid pump.
