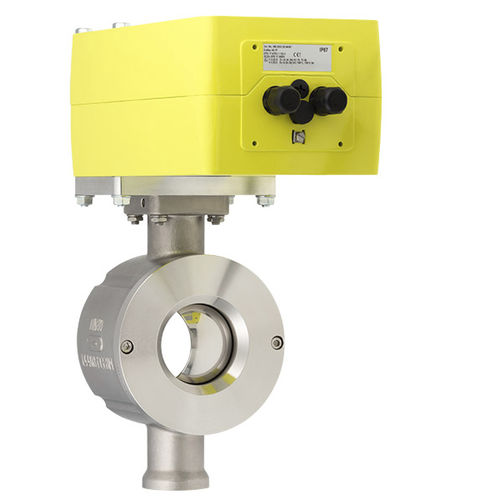

Ball valve 4037

electrically-actuatedfor controlshut-off

The ball sector motor valve type 4037 is suitable for use in potentially explosive atmospheres in accordance with Directive 94/9 EC. This motorized control valve is used in a number of process applications for shut-off and control tasks, especially with abrasive, pasty and fibrous fluids. Size: DN 25 - DN100 Pressure: DN25 - DN50: PN40, ANSI#300, ANSI#150 DN65 - DN100: PN25, ANSI#150 Material: Stainless steel 1.4408 / 1.4404 Temperature: Media temperatur: -40 °C up to 220 °C depending on the sealings Connection - Wafer type design Accessories - Limit switch Position feedback . . . Actuator - Control actuators or 3-point actuators Thrust 24 - 230 V AC/DC Application - Fluids, suspensions as well as gases, also contaminated, abrasive or pasty. Ex-proof - Ex-certified motor actuator II2G/D EEx ia IIC T6/T5 and IEC Ex"
