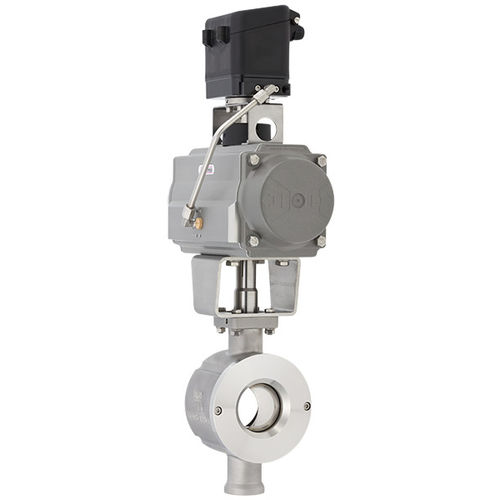

Dome valve 4040
ballpneumatically-operatedcontrol

dome valve
dome valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
pneumatically-operated
Function
control, shut-off
Media
for slurry
Body
wafer, dome, stainless steel
Other characteristics
ANSI, single-acting, quarter-turn, VDI/VDE 3845, for abrasive fluids, for viscous fluids
Temperature

Max.: 220 °C (428 °F)

Min.: -40 °C (-40 °F)

Pressure

Max.: 40 bar (580.2 psi)

Min.: 10 bar (145 psi)

DN

Max.: 300 mm (11.811 in)

Min.: 25 mm (0.984 in)

Description

This ball sector motor valve is used for shut-off and control applications especially with contaminated, abrasive and viscous fluids. This series is characterized by extremely high rangeability (300:1) and a high flow capacity. •Size: DN 25 - DN 300 •Pressure: PN16, PN25, PN40 (depending on size) ANSI #150, #300 (depending on size) •Material: Stainless steel 1.4408, 1.4404 •Temperature: up to 220°C (deppending on the sealings) Accessories: Limit switch Position feedback Filter station Pilot valve ... Actuator variants: pneumatic quarter turn actuators with mounting kit according DIN/ISO 5211 without actuator with standard mounting kit according DIN/ISO 5211 Application: liquids, suspensions, gases and difficult, abrasive media Positioner variants Digital positioner Type 8049 i/p-positioner (e.g. SIPART PS2 or PMV Type EP5) Without positioner with mounting kit according VDI/VDE 3845
