Setting tool Cable Fit-In

Insertion aid for welding end and inline splices

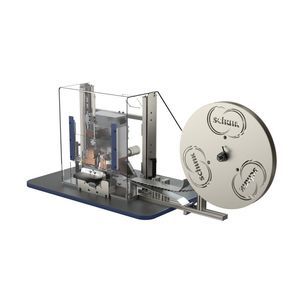

In end and inline splices, the required strand overlap length and the distance between the welding area and cable insulation are often specified. Both depend on manual insertion of the strands. Schunk Sonosystems has developed the Cable Fit-In, an external insertion aid designed to deliver reproducible welding results and precise adherence to specified dimensions. Two clips position the cables reliably in the welding area, and distance settings can be preset and adjusted according to the application and cable cross-section range.

You benefit from these advantages:

• Available for Minic-II, Minic-III and Minic-IV machines
• Cable Fit-In can be retrofitted to Minic-II, Minic-III, Minic-IV, GS-40 and GS-50 machines

Characteristics / Technical specifications

• Product type: external insertion aid for welding end and inline splices
• Function: ensures reproducible welding results and exact adherence to specified overlap and distance dimensions

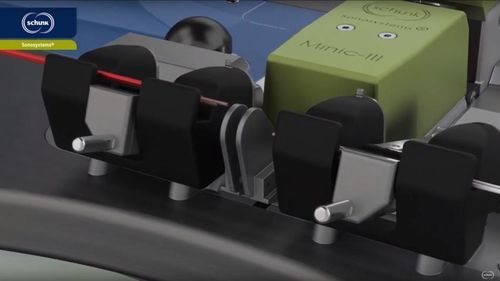

• Cable positioning: two clips that place cables optimally in the welding area
• Distance control: presettable and configurable according to application, specifications and cable cross-section range
• Compatibility: available for Minic-II, Minic-III, Minic-IV; retrofittable to Minic-II, Minic-III, Minic-IV, GS-40, GS-50
