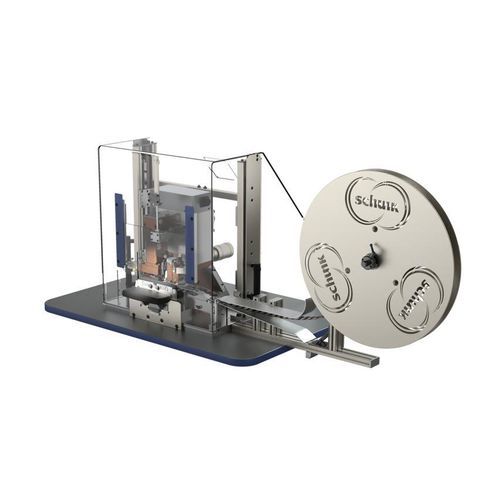

Ultrasonic welding machine DS20-III Variant TFmanualfor aluminumfor copper
Add to favorites
Compare this product
Characteristics
- Technique
- ultrasonic
- Operational mode
- manual
- Applications
- for aluminum, for copper
- Power
4,000 W, 6,000 W
- Output frequency
20 kHz
Description
Product overview
The DS20-III is an ultrasonic machine designed for welding wire strands to terminals. It processes common copper and aluminium terminals and features a renewed hood concept providing 360° accessibility for simplified maintenance and service access.
Key benefits
Technical specifications
The DS20-III is an ultrasonic machine designed for welding wire strands to terminals. It processes common copper and aluminium terminals and features a renewed hood concept providing 360° accessibility for simplified maintenance and service access.
Key benefits
- Cross-section range: 1.5–35 mm² (copper) or 2.5–42 mm² (aluminium); optional extensions up to 50 mm² (copper) and 60 mm² (aluminium)
- Terminal feed orientations available: 0°, 90° and 180°
- Quick and easy tool change system for reduced downtime
- Oscillator unit with quick-change system
- Operating frequency: 20 kHz
- Generator power: 4 kW (standard), 6 kW (optional)
Technical specifications
- Application: ultrasonic welding – welding wire strands on terminals
- Materials processed: copper and aluminium terminals
- Standard cross-section ranges: 1.5–35 mm² (copper); 2.5–42 mm² (aluminium)
- Optional cross-section extension: up to 50 mm² (copper) and up to 60 mm² (aluminium)
- Terminal feed orientations: 0°, 90°, 180°
- Tool change: quick and easy tool change system
- Oscillator: quick-change oscillator unit
- Operating frequency: 20 kHz
- Generator power: 4 kW (standard), 6 kW (optional)
- Design: renewed hood concept for 360° accessibility to simplify maintenance
