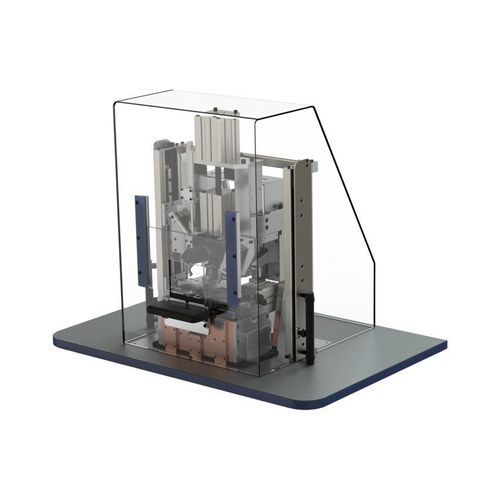

Integration welding system DS20-II

for aluminumfor copperCE

Product overview
The DS20-II is a wire‑to‑terminal welding system introduced in 2011 for high‑precision connection of wires and terminals. It enables welding of copper and/or aluminium conductors with cross sections from 6 mm² up to 120 mm² and is designed for integration into automated wire‑harness production lines.

You benefit from these advantages

• Cross‑section range: 6–120 mm²
• Generator power options: 4 kW or 6 kW
• Operating frequency: 20 kHz
• Applications: welding of Cu and/or Al wires to various contact parts
• Comprehensive recording of process data for traceability
• CE conform
• Modular, flexible and adaptable design for different production needs
• Rapid‑change oscillator unit to minimise downtime
• Insulation crimp / bad‑splice cutter included
• Ready for integration into automated production lines

Characteristics / technical specifications

• Launch year: 2011
• Weldable wire cross sections: 6–120 mm²
• Generator power: selectable 4 kW or 6 kW
• Operating frequency: 20 kHz
• Supported materials: copper (Cu) and aluminium (Al)
• Process data: comprehensive recording supported for quality control
• Standards: CE conform
• Design: modular and adaptable; suitable for automated lines
• Features: rapid‑change oscillator unit; insulation crimp and bad‑splice cutter
