Ultrasonic welding machine Kobra-2-Pro-Ex

automaticfor integrationwith data logging

Product overview

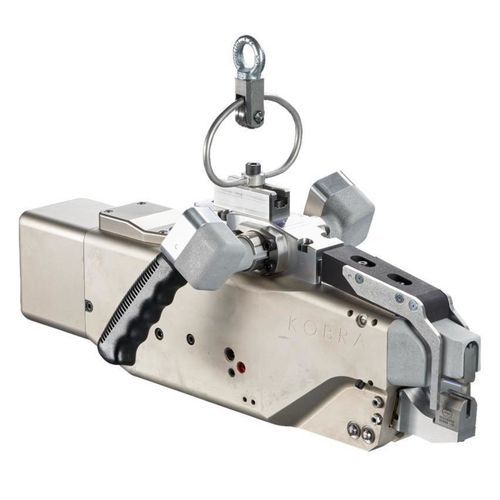

The Kobra-2-Pro-Ex is a 3,500 W ultrasonic welding machine for tube sealing engineered for Zone 2 (Ex) environments. It welds tubes with outer diameters up to 10 mm and wall thicknesses up to 1 mm. Built for industrial use, the unit combines robust mechanical design with advanced process and network control and an intuitive user interface suitable for automated production lines.

You benefit from these advantages

• 3,500 W power ensuring consistent welding cycles
• Capability to weld tubes up to 10 mm outer diameter and up to 1 mm wall thickness
• CTP (Correct Tube Position) sensor for precise alignment and prolonged tool life
• Real-time monitoring with alarm-supported maintenance functions
• Sequence welding and barcode-based management of welding parameters
• MES compatibility with data import/export for production integration
• Quick tool changes within minutes and intuitive touchscreen operation
• Ex-proof design certified for use in Zone 2 hazardous areas

Applications
Designed for industrial tube sealing operations, especially where explosion-proof equipment and integration with production data systems (MES) are required. Suited to demanding welding sequences, automated workflows and barcode-driven parameter management.

caractéristiques / spécifications techniques

• Type: Ultrasonic welding machine for tube sealing
• Power: 3,500 W
• Max. tube outer diameter: 10 mm
• Max. tube wall thickness: 1 mm
• Sensor: CTP (Correct Tube Position) sensor
• Monitoring: Real-time monitoring with alarm-supported maintenance functions
• Control features: Sequence welding; barcode-based management of welding parameters; advanced process and network control
• Integration: MES compatibility (data import/export)
• Operation: Intuitive touchscreen; quick tool changes (within few minutes)
• Protection/Zone rating: Ex-proof design for Zone 2 environments
• Construction: Robust for industrial applications
