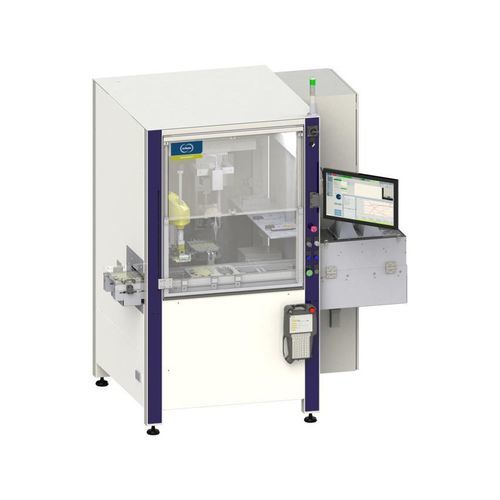

Ultrasonic welding machine FX Core

semi-automaticfor electronic componentsrotating table

Overview
The FX Core is designed for ultrasonic welding of power electronics (e.g. IGBT modules) and cell-contacting systems for battery applications. It is a semi-automated ultrasonic welding system offering integrated tool adjustment and quick-change capability for welding tools.

You benefit from these advantages

• Ultrasonic welding head: standard 20 kHz (35 kHz available on request); embedded adjustment and quick-change solution for welding tools
• Working area (x-y-table and rotation axis): x = 250 mm, y = 400 mm, rotation = 360°; axes with brake systems for maximum stiffness and resistance to ultrasonic vibration
• Z-direction accessibility (sonotrode): up to 62 mm
• Patented dynamic process control: monitors power and height curves with adjustable tolerances for welding time, height and deformation per weld point
• Customizable options: pattern recognition system, DMC reader, measurement and calibration station

Characteristics / technical specifications

• Application: ultrasonic welding of power electronics (e.g. IGBT modules) and cell contacting systems for battery applications
• System type: semi-automated ultrasonic welding machine
• Ultrasonic frequency: 20 kHz (35 kHz on request)
• Welding head features: embedded adjustment and quick-change solution for welding tools
• Working area X: 250 mm
• Working area Y: 400 mm
• Rotation axis: 360°
• Maximum Z accessibility (sonotrode): 62 mm
• Axis design: specially engineered axes with brake systems for high stiffness and resistance to ultrasonic vibrations
• Process control: patented dynamic monitoring of power and height curves; adjustable tolerances for welding time, height and deformation per weld point
• Optional features: pattern recognition system, DMC reader, measurement and calibration station
