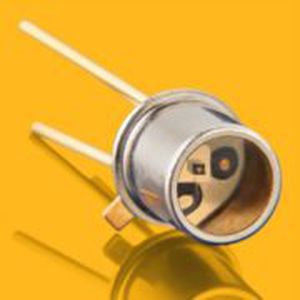

UV photodiode SG01S-18ISO90

The SG01S-18ISO90 is a broadband SiC UV photodiode that provides the unique property of extreme radiation hardness, near-perfect visible blindness, low dark current, high speed and low noise. These features make SiC the best available material for visible blind semiconductor UV detectors. The SiC detectors can be permanently operated at up to 170°C (338°F). The temperature coefficient of signal (responsivity) is also low, < 0,1%/K. Because of the low noise (dark current in the fA range), very low UV radiation intensities can be measured reliably. • UV broadband (UVA+UVB+UVC) • 06 mm2 detector area • TO18 hermetically sealed metal housing, two isolated pins, one additional grounded pin • 10 mW/cm2 irradiation at 280 nm (peak responsivity) results a current of approx. 780 nA • SiC chip with PTB reported high radiation hardness
