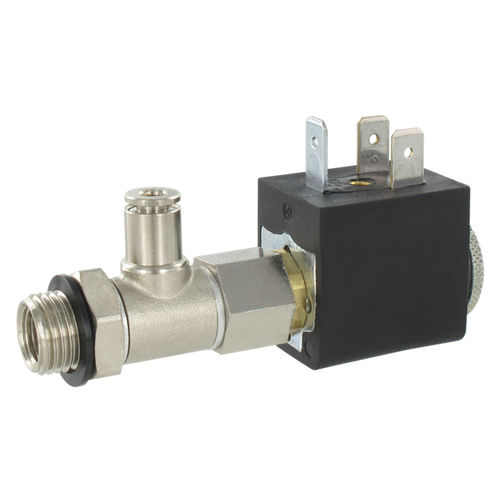

Direct-operated solenoid valve EV series

3-waynormally closedair

Pneumatic actuators - EV series ✔ VDE Standard 0580 The EV series pneumatic solenoid controls, marketed by SENGA, are used in applications with filtered air, lubricated or not. Offering a power of 9 VA in AC and 6 W in DC, the EV solenoids operate at a maximum temperature (T + AT) of 140°C (see formula on data sheet). They have class F insulation, VDE 0580 standard. With a pressure rating of 0 to 12 bar, these solenoids have a 1 mm diameter passage, M5 collectable exhaust, 3-way, and a cylindrical thread... They are also equipped with form B coils which operate at a voltage of V24 - 48 - 110 - 220 / 50 Hz or V12 - 24 - 48 in DC. Characteristics Maximum temperature: T + AT = 140° C T (ambient or fluid temperature) AT (coil temperature after 1 hour of operation 80 / 90°) Normally closed kv: 0,8 l/min Cylindrical thread Coils form B : - V24 - 48 - 110 - 220 / 50 Hz - V12 - 24 - 48 / DC Insulation class F, VDE 0580 Operating pressure: between 0 bar and 12 bar
