Planetary gear reducer P142 series

coaxialhollow-shaftflange

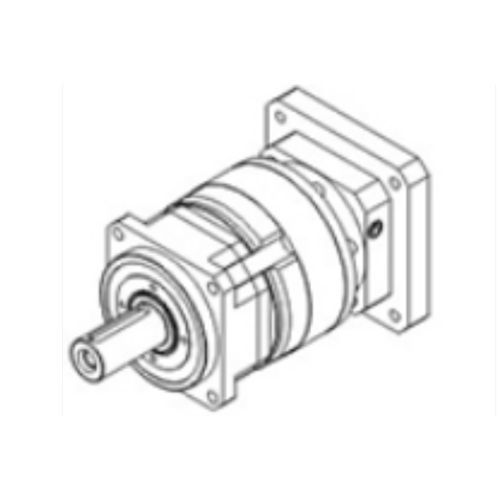

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed in a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load-carrying capacity and excellent axial load-carrying capacity. The one-time processing and completion process is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of ReducerMain Technical Parameters:LevelFirst – stageSecond – stageReduction Ratio3/4/5/812/15/16/20/25/32/40/64Body Length290334.5Maximum Radial Force10000N12200NMaximum Axial Force16000N21000NFull – load Efficiency≥96%≥94%Weight16.5Kg22.5KgService Life ≥20000hRated Input Speed2500rpm2500rpmMaximum Input Speed4500rpm4500rpmMotor Power3000W3000WGear Precision Grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature– 25° ~ + 90°– 25° ~ + 90°Protection GradeIP65IP65Lubrication MethodLong – acting LubricationLong – acting LubricationInstallation MethodFlangeFlangeCategory: GearboxTag: ac servo motor and driverKey Features / Technical Specifications:Integrated nut design to eliminate axial clearanceLarge span front and rear bearing distribution for high rigidityHigh torsional rigidity and load-carrying capacity (radial and axial)One-time processing for high coaxialityReduction ratios: 3/4/5/8 (first stage), 12/15/16/20/25/32/40/64 (second stage)Body length: 290 mm (first stage), 334.5 mm (second stage)Maximum radial force: 10000N (first stage), 12200N (second stage)Maximum axial force: 16000N (first stage), 21000N (second stage)Full-load efficiency: ≥96% (first stage), ≥94% (second stage)Weight: 16.5Kg (first stage), 22.5Kg (second stage)Service life: ≥20000h (second stage)Rated input speed: 2500rpmMaximum input speed: 4500rpmMotor power: 3000WGear precision grade: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection grade: IP65Lubrication method: Long-acting lubricationInstallation method: Flange
