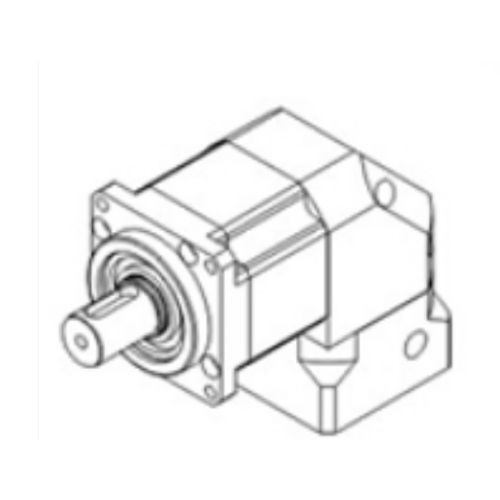

Planetary gear reducer WPF60 series

right anglehollow-shaftprecision

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed in a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load-carrying capacity and excellent axial load-carrying capacity. The one-time processing and completion process is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of ReducerLevelFirst – stageSecond – stageThird – stageReduction Ratio3/4/5/7/1012/16/20/25/28/35/40/50/7080/100/125/140/175/200/250/700/1000Body Length150.5166.5182.5Maximum Radial Force400N500N800NMaximum Axial Force300N390N700NFull – load Efficiency≥94%≥92%≥88%Weight2.0Kg2.3Kg2.6KgService Life≥20000h≥20000h≥20000hRated Input Speed3000rpm3000rpm3000rpmMaximum Input Speed8000rpm8000rpm8000rpmMotor Power400W400W400WGear Precision Grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature– 25° ~ + 90°– 25° ~ + 90°– 25° ~ + 90°Protection GradeIP65IP65IP65Lubrication MethodLong – acting LubricationLong – acting LubricationLong – acting LubricationInstallation MethodFlangeFlangeFlangeCategory: GearboxTag: ac servo motor and driverTechnical Specifications:Reduction Ratio: 3/4/5/7/10 (First stage), 12/16/20/25/28/35/40/50/70 (Second stage), 80/100/125/140/175/200/250/700/1000 (Third stage)Body Length: 150.5 mm (First), 166.5 mm (Second), 182.5 mm (Third)Maximum Radial Force: 400N (First), 500N (Second), 800N (Third)Maximum Axial Force: 300N (First), 390N (Second), 700N (Third)Full-load Efficiency: ≥94% (First), ≥92% (Second), ≥88% (Third)Weight: 2.0Kg (First), 2.3Kg (Second), 2.6Kg (Third)Service Life: ≥20000hRated Input Speed: 3000rpmMaximum Input Speed: 8000rpmMotor Power: 400WGear Precision Grade: 6 GB/T10095 – 2008Operating Temperature: –25° ~ +90°Protection Grade: IP65Lubrication Method: Long-acting LubricationInstallation Method: Flange
