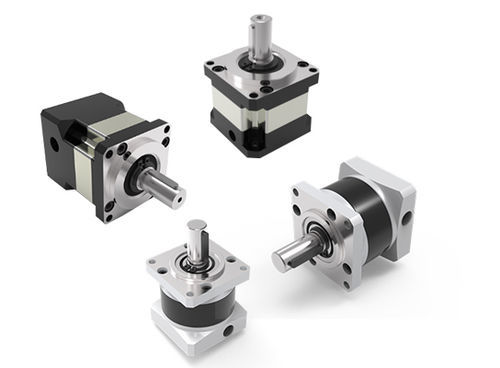

Planetary gear reducer PF42 series

coaxialhollow-shaftflange-mounted

The PF42 Standard Series planetary gearbox features an integrated nut to eliminate axial clearance, ensuring high torsional rigidity and excellent load-carrying capacity. The large-span front and rear bearings form a robust structure, providing superior radial and axial load support. The precise one-time processing guarantees high coaxiality. Main Technical Parameters: - Reduction Ratio: 4/5/8 (First stage), 16/20/25/32/40 (Second stage) - Body Length: 55mm (First stage), 67mm (Second stage) - Maximum Radial Force: 280N (First stage), 320N (Second stage) - Maximum Axial Force: 200N (First stage), 240N (Second stage) - Full-load Efficiency: ≥96% (First stage), ≥92% (Second stage) - Weight: 0.35Kg (First stage), 0.5Kg (Second stage) - Service Life: ≥20000h - Rated Input Speed: 3000rpm - Maximum Input Speed: 6000rpm - Gear Precision Grade: 6 GB/T10095 – 2008 - Operating Temperature: –25° ~ +90° - Protection Grade: IP65 - Lubrication Method: Long-acting Lubrication - Installation Method: Flange Category: Gearbox Tag: AC servo motor and driver Key Features / Technical Specifications: - Integrated nut to eliminate axial clearance - High torsional rigidity and load-carrying capacity - High coaxiality due to one-time processing
