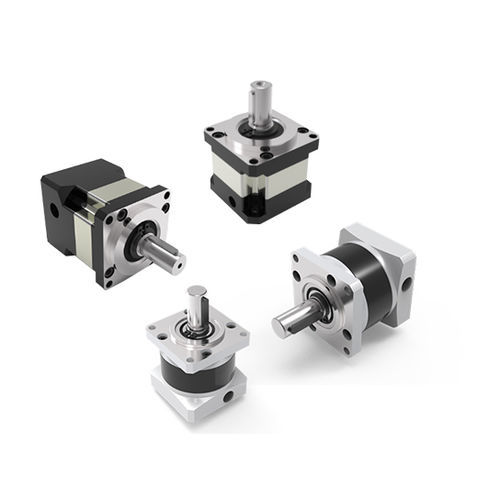

Planetary gear reducer PF160 series

coaxialhollow-shaft

The output planetary carrier of the reducer adopts an integrated nut to eliminate axial clearance design. The front and rear bearings are distributed in a large span within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load-carrying capacity and excellent axial load-carrying capacity. The one-time processing and completion process is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of ReducerMain Technical ParametersLevelFirst – stageSecond – stageThird – stageReduction Ratio3/4/5/812/15/16/20/25/32/40/6480/100/120/125/160/200/256/512Body Length290334.5379Maximum Radial Force10000N12200N20000NMaximum Axial Force16000N21000N36000NFull – load Efficiency≥96%≥94%≥90%Weight17.5Kg23.5Kg27.5KgService Life≥20000h≥20000h≥20000hRated Input Speed2500rpm2500rpm2000rpmMaximum Input Speed4500rpm4500rpm5000rpmMotor Power3000W3000W3000WGear Precision Grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature– 25° ~ + 90°– 25° ~ + 90°– 25° ~ + 90°Protection GradeIP65IP65IP65Lubrication MethodLong – acting LubricationLong – acting LubricationLong – acting LubricationInstallation MethodFlangeFlangeFlangeCategory: GearboxTag: ac servo motor and driverCharacteristics / Technical SpecificationsProduct Name: PF160 Standard SeriesReduction Ratio: 3/4/5/8 (First stage), 12/15/16/20/25/32/40/64 (Second stage), 80/100/120/125/160/200/256/512 (Third stage)Body Length: 290 mm (First stage), 334.5 mm (Second stage), 379 mm (Third stage)Maximum Radial Force: 10000N (First stage), 12200N (Second stage), 20000N (Third stage)Maximum Axial Force: 16000N (First stage), 21000N (Second stage), 36000N (Third stage)Full-load Efficiency: ≥96% (First stage), ≥94% (Second stage), ≥90% (Third stage)Weight: 17.5Kg (First stage), 23.5Kg (Second stage), 27.5Kg (Third stage)Service Life: ≥20000h (all stages)Rated Input Speed: 2500rpm (First and Second stage), 2000rpm (Third stage)Maximum Input Speed: 4500rpm (First and Second stage), 5000rpm (Third stage)Motor Power: 3000W (all stages)Gear Precision Grade: 6 GB/T10095 – 2008 (all stages)Operating Temperature: –25° ~ +90° (all stages)Protection Grade: IP65 (all stages)Lubrication Method: Long-acting Lubrication (all stages)Installation Method: Flange (all stages)
