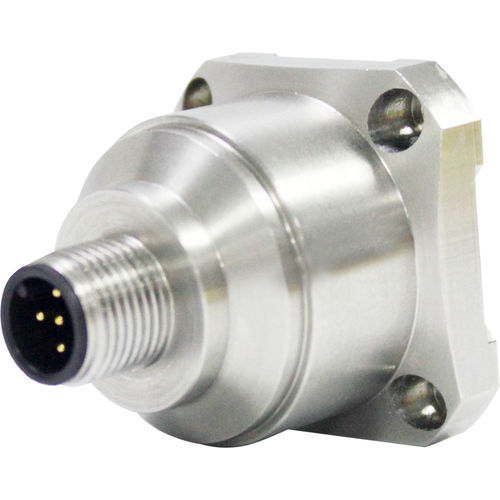

3-axis accelerometer AKF390
crystalcapacitiveMEMS

3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
3-axis accelerometer
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Technology
MEMS, capacitive, crystal
Other characteristics
rugged, compact, waterproof, IP67, voltage output, analog
Acceleration range

Max.: 40 m/s² (131 ft/s²)

Min.: 2 m/s² (7 ft/s²)

Frequency

Max.: 5.5 kHz

Min.: 2.4 kHz

Description

MEMS VOLTAGE ACCELEROMETER Three axis (X、Y、Z) output voltage: 0~5V Power supply:9~36V anti-impact:2000G working temperature: -40°C ~ +85°C store temperature: -40°C ~ +85°C excellent bias stability Good environmental performance (impact, vibration and temperature) Product Description The AKF390 triaxial accelerometer is a voltage output type accelerometer independently developed and produced by RION Technology, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, different address codes can be set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.
