Electric servo-cylinder UNI-A60-U
with servo-motorwith piston rodstepper

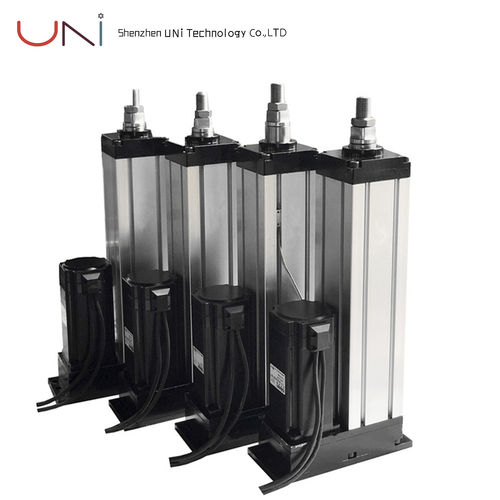

Electric servo-cylinder - UNI-A60-U - Shenzhen UNI Technology Co.,Ltd - with servo-motor / with piston rod / stepper
Electric servo-cylinder - UNI-A60-U - Shenzhen UNI Technology Co.,Ltd - with servo-motor / with piston rod / stepper
Electric servo-cylinder - UNI-A60-U - Shenzhen UNI Technology Co.,Ltd - with servo-motor / with piston rod / stepper - image - 2
Electric servo-cylinder - UNI-A60-U - Shenzhen UNI Technology Co.,Ltd - with servo-motor / with piston rod / stepper - image - 3
Add to favorites
Compare this product
Go to the Shenzhen UNI Technology Co.,Ltd website for more information

Characteristics

Type
electric
Technology
with servo-motor, with piston rod, stepper, ball screw
Configuration
single-acting
Material
aluminum profile
Motor
AC, with brushless DC motor
Protection class
maintenance-free, waterproof
Applications
industrial, for lifting
Other characteristics
high-force, precision, high-performance, with integrated position sensor, with RS-485 interface, positioning, high-speed, with sensor option, programmable, backlash-free, high-efficiency, custom, with integrated controller, with integrated displacement encoder, in-line, CANopen
Stroke

2,000,000 µm
(78.74 in)

Min.: 0 µm

Max.: 1,500 µm

Bore

110 mm
(4.33 in)

Force

Min.: 0 kN

Max.: 4.5 kN

Speed

83 mm/s, 166 mm/s

Repeatability

0.02 mm
(0.0008 in)

Description

Click for more details:
https://unite-ch.net/product/lifting-electric-piston-cylinder/

High Force Electric Servo Cylinder are manufactured by UNI Technology. It offers large load capacity in many model options from 0 ton-20 tons. Besides, these are best for applications you want high force but low speed is not an issue. It’s of high precision but high efficicy. Meanwhile, absolute and incremental encoder are choosable. It feedbacks the position to your software. As a result, you can control the position precisely. RS232/485 protocol is for speed control. Omron NPN/PNP sensors will be provided to limit stroke. The sensors will be lightened when it reach its limit stroke.

Note:

Please consult us about the rated load and speed of actuator. We will calculate basically on gear ratio and motor data. Gearbox will be needed when high force, low speed requested. Many high precision brands of gearbox are available.
All UNI High Force Electric Servo Cylinder will be equiped with motor,drive and cables. Premium brands of motor are affordable now.
You can surely use your own motor or gearbox. Please just send us the drawings and details. UNI engineer team will design and custom the servo actuator for you.

Contact:
Miya Huang-Sales Manager
sales@unite-ch.net
WhatsApp:+86 134 2182 9809
www.unite-ch.net
