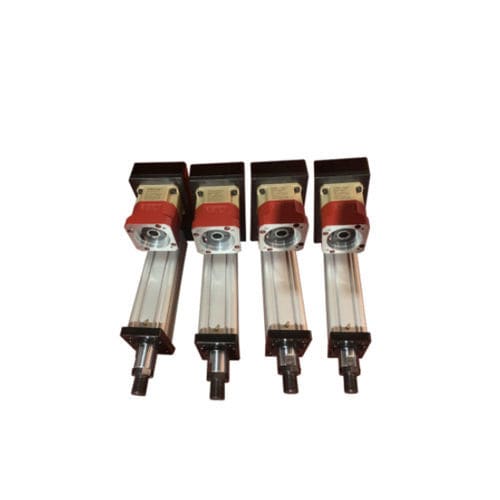

Electric servo-cylinder UNI-A50-Uwith servo-motorwith piston rodwith guided piston rod
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- with servo-motor, with piston rod, with guided piston rod
- Configuration
- single-acting
- Material
- aluminum profile
- Motor
- AC, DC
- Protection class
- IP54, IP65, IP68, maintenance-free, waterproof
- Applications
- for lifting
- Other characteristics
- high-speed, precision, high-performance, with integrated controller, with RS-485 interface, compact, positioning, with sensor option, programmable, high-efficiency, custom, CANopen, high-force, with integrated displacement encoder, in-line, backlash-free, high load capacity
- Stroke
Max.: 1,500 mm
(59.055 in)Min.: 0 mm
(0 in)- Bore
95 mm
(3.74 in)- Force
Max.: 30 kN
Min.: 0 kN
- Motor power
3 kW
(4.08 hp)- Speed
83 mm/s
- Repeatability
0.02 mm
(0.0008 in)
Description
Click for more details:
https://unite-ch.net/product/servo-press-electric-cylinder/
Servo Press Electric Cylinder are manufactured by UNI Technology. It offers large load capacity in many model options. These are best for applications you want high force but low speed is not an issue. It’s of high precision but high efficicy. Meanwhile, absolute and incremental encoder are choosable. It feedbacks the position to your software. As a result, you can control the position precisely. RS232/485 protocol is for speed control. Pulse/CanOpen or other control ways are also available. Omron NPN/PNP sensors will be provided to limit stroke. The sensors will be lightened when it reach its limit stroke.
Note:
Please consult us about the rated load and speed of actuator. We will calculate basically on gear ratio and motor data. Gearbox will be needed when high force, low speed requested. Many high precision brands of gearbox are available.
All UNI High Force Electric Servo Cylinder will be equiped with motor,drive and cables. Premium brands of motor are affordable now.
You can surely use your own motor or gearbox. Please just send us the drawings and details. UNI engineer team will design and custom the servo actuator for you.
Contact:
Miya Huang-Sales Manager
sales@unite-ch.net
WhatsApp:+86 134 2182 9809
www.unite-ch.net
https://unite-ch.net/product/servo-press-electric-cylinder/
Servo Press Electric Cylinder are manufactured by UNI Technology. It offers large load capacity in many model options. These are best for applications you want high force but low speed is not an issue. It’s of high precision but high efficicy. Meanwhile, absolute and incremental encoder are choosable. It feedbacks the position to your software. As a result, you can control the position precisely. RS232/485 protocol is for speed control. Pulse/CanOpen or other control ways are also available. Omron NPN/PNP sensors will be provided to limit stroke. The sensors will be lightened when it reach its limit stroke.
Note:
Please consult us about the rated load and speed of actuator. We will calculate basically on gear ratio and motor data. Gearbox will be needed when high force, low speed requested. Many high precision brands of gearbox are available.
All UNI High Force Electric Servo Cylinder will be equiped with motor,drive and cables. Premium brands of motor are affordable now.
You can surely use your own motor or gearbox. Please just send us the drawings and details. UNI engineer team will design and custom the servo actuator for you.
Contact:
Miya Huang-Sales Manager
sales@unite-ch.net
WhatsApp:+86 134 2182 9809
www.unite-ch.net
