Electric cylinder UNI-A60-U
pistonwith piston rodwith servo-motor

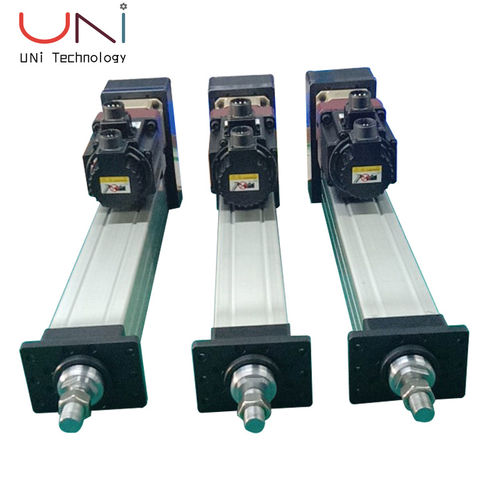

Electric cylinder - UNI-A60-U - Shenzhen UNI Technology Co.,Ltd - piston / with piston rod / with servo-motor
Electric cylinder - UNI-A60-U - Shenzhen UNI Technology Co.,Ltd - piston / with piston rod / with servo-motor
Electric cylinder - UNI-A60-U - Shenzhen UNI Technology Co.,Ltd - piston / with piston rod / with servo-motor - image - 2
Electric cylinder - UNI-A60-U - Shenzhen UNI Technology Co.,Ltd - piston / with piston rod / with servo-motor - image - 3
Electric cylinder - UNI-A60-U - Shenzhen UNI Technology Co.,Ltd - piston / with piston rod / with servo-motor - image - 4
Add to favorites
Compare this product
Go to the Shenzhen UNI Technology Co.,Ltd website for more information

Characteristics

Type
electric
Technology
piston, with piston rod, with servo-motor, ball screw, stepper, timing belt
Configuration
single-acting
Material
anodized aluminum
Motor
DC, synchronous, AC
Voltage
24 V, 12 V, 48 V, 380 V, 400 V
Protection class
IP65, IP54, IP66, IP68, waterproof, maintenance-free
Applications
industrial, clamping, for lifting applications, for lifting, for construction equipment, for process automation, for OEM, for lifting platforms, control, lift table, for furniture level adjustment
Other characteristics
position-sensing, precision, for heavy loads, positioning, high-frequency, CAN Bus, custom, high-force, high-tonnage, with parallel motor, in-line, externally-guided, adjustable-stroke, heavy-duty
Stroke

Min.: 0 mm
(0 in)

Max.: 1,000 mm
(39.37 in)

Bore

110 mm
(4.33 in)

Force

Min.: 0 kN

Max.: 4.5 kN

Speed

83 mm/s

Repeatability

0.02 mm
(0.0008 in)

Description

Lifting Electric Piston Cylinder are manufactured by Shenzhen UNI Technology Co.,Ltd. It comes along with limit sensor (NPN/PNP type). Also, incremental/absolute encoder will feedback the position. PLC controllable. Besides, servo motor offers high precision control within the stroke. What’s more, speed and position are all adjustable Custom electric cylinder specification based on requirements about stroke, speed and load. Lead time: 10 days. Installation: Front Flange+male-rod thread (default set) Electric Servo cylinder weight 7 (kg) Electric cylinder type: In-line type or foldback type Rotation: with anti-rotation mechanism(internal freely-rotation mechanism also available) Gear reduction: 1:1 (Gear box will be added for some cases) Japan Shimpo,Taiwan Liming,etc Power supply: DC 12V/24V/220V AC optional Control way: EtherCat,CanOpen,PLC,Analog,DMX512,etc Motor Option: Servo motor/Stepper motor/DC motor/Asynchronous motor (Panasonic, Siemens,Schneider,Moons,etc)
