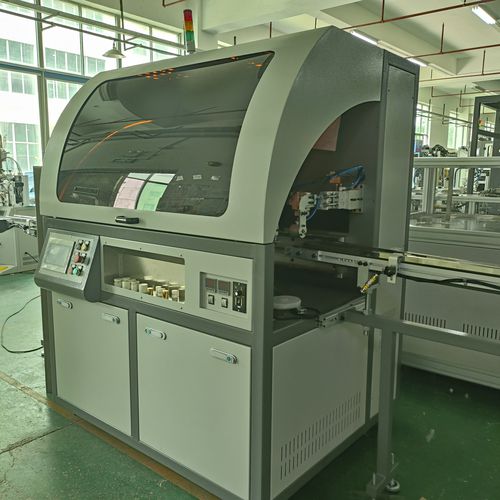

Large print area hot foil stamping machine CNC-T101

mechanicaltubefor caps

Dual-Surface Automatic Hot Foil Stamping Machine

Overview
This automatic hot foil stamping machine is a single-station, dual-color system engineered for efficient metallic decoration on both round and flat surfaces of various containers. It performs a complete one-piece-flow process: automatically loading the workpiece, applying foil to the top surface, then to the side, and finally unloading the finished product. Designed for jars, bottle caps, and tubes, it combines precision, speed, and versatility for high-quality finishing applications.
Technical Specifications

• Model: (Model number to be specified)
• Process: Single-Station, Dual-Color Hot Foil Stamping
• Production Speed: 780 – 1,200 pcs/hour
• Workpiece Compatibility: Diameter 15 – 34 mm | Height 25 – 60 mm
• Power Supply: 380V, 3-Phase, 50/60Hz, 2.5 kW
• Air Pressure: 6 – 8 Bar
• Machine Dimensions (L×W×H): 2300 × 1200 × 1750 mm

Core Features & Advantages

• Complete Dual-Surface Decoration: Applies foil precisely to both the top and side of a workpiece in one automated cycle, streamlining production for complex branding requirements.
• Intelligent & Reliable Operation: Features a No Part, No Print (NPNP) function, low air pressure alarm, and foil shortage detection to ensure consistent quality and prevent material waste.
• Fully Automated Workflow: Integrates automatic loading, surface selection, stamping, and unloading for a seamless, labor-efficient operation.
• High-Precision Servo Control: Utilizes servo motors for accurate movement and positioning, paired with an imported HMI (Human-Machine Interface) for user-friendly setup and control.
• Quick-Change Flexibility: Easy jig replacement allows the machine to adapt quickly to various round caps and jars, maximizing production versatility.
