Electro-pneumatic hot foil stamping machine
for large print areasmanualfor leather

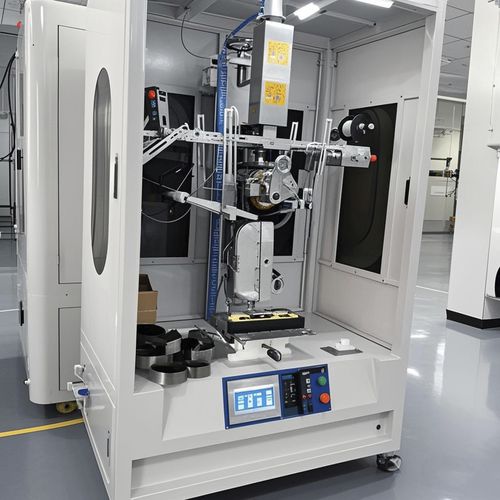

Electro-pneumatic hot foil stamping machine - Shenzhen xinzhong plastic - for large print areas / manual / for leather
Electro-pneumatic hot foil stamping machine - Shenzhen xinzhong plastic - for large print areas / manual / for leather
Electro-pneumatic hot foil stamping machine - Shenzhen xinzhong plastic - for large print areas / manual / for leather - image - 2
Electro-pneumatic hot foil stamping machine - Shenzhen xinzhong plastic - for large print areas / manual / for leather - image - 3
Electro-pneumatic hot foil stamping machine - Shenzhen xinzhong plastic - for large print areas / manual / for leather - image - 4
Electro-pneumatic hot foil stamping machine - Shenzhen xinzhong plastic - for large print areas / manual / for leather - image - 5
Electro-pneumatic hot foil stamping machine - Shenzhen xinzhong plastic - for large print areas / manual / for leather - image - 6
Add to favorites
Compare this product
Go to the Shenzhen xinzhong plastic website for more information

Characteristics

Options
electro-pneumatic, for large print areas, for paper, for leather, for caps, compact, mechanical, tube, manual

Description

Servo-Driven Hot Foil Stamping Machine for Large Complex & Curved Surfaces


  • Product Overview
  • This servo-driven hot foil stamping machine is engineered for stable, high-precision metallic decoration on a wide range of curved and geometrically complex surfaces. It is ideally suited for applying durable, high-quality foil finishes to round or irregularly shaped caps, bottles, and other challenging containers. Combining advanced servo control with robust safety features, it delivers consistent performance for demanding industrial applications in cosmetics, packaging, and automotive sectors.
  • Core Features & Advantages
  • Servo-Enhanced Precision & Stability: Features a servo motor-driven jig with controlled rotation and tension systems, ensuring exceptional accuracy and repeatability on every stamp.
  • Broad Shape Compatibility: Expertly handles round, oval, and irregularly shaped workpieces, offering unmatched versatility for diverse product lines.
  • High-Efficiency Operation: Achieves a production cycle of 6–15 pieces per minute with precise temperature control up to 300C for optimal foil adhesion and finish quality.
  • Integrated Safety & Control: Equipped with safety doors, a safety light curtain, and a user-friendly PLC with HMI interface, ensuring secure and intuitive operation.
  • Compact & Adaptable Design: Features an adjustable platform (300 × 380 mm) and a stepper motor-driven feeding system (max. 150mm width) within a compact footprint (1200 × 750 × 2100 mm), allowing easy integration into various workshop layouts.
  • Technical Specifications
  • Drive System: Servo Motor (Jig Rotation & Tension Control)
  • Production Speed: 6 – 15 pcs/min
  • Max. Temperature: 300C
  • Platform Size: 300 × 380 mm (Adjustable)
  • Working Height: 800 mm
  • Max. Feeding Width: 150 mm (Stepper Motor Adjusted)
  • Machine Dimensions (L×W×H): 1200 × 750 × 2100 mm
  • Control System: PLC with HMI Interface
