Automatic Round-Surface Hot Foil Rolling Machine for Cosmetic Packaging Irregular Cap Hot Stamping Equipment








Overview

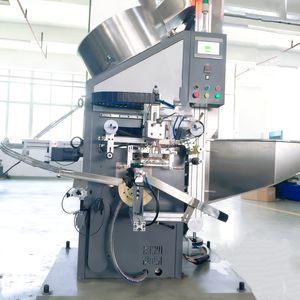

This specialized hot foil stamping machine is engineered for high-efficiency metallic line decoration on the curved surfaces of cosmetic tubes, bottles, and lids. Utilizing a unique silicon rubber roller system instead of a traditional cliché, it delivers consistent, high-quality foiling on round, square, and shaped containers. The machine operates as a complete one-piece-flow system—integrating automatic loading, precise positioning, foil application, and unloading—ensuring seamless and efficient production for premium cosmetic packaging.
Technical Specifications

• Production Speed: 1,800 – 2,400 pcs/min
• Component Compatibility:
• Diameter: 15 – 50 mm
• Length/Height: 20 – 80 mm
• Power Supply: 380V, 3-Phase, 50/60Hz
• Air Pressure: 6 – 8 Bar

Core Features & Advantages

• Innovative Silicon Roller Stamping: Employs a durable silicon rubber roller for foiling, providing even pressure and excellent adaptability to various curved and shaped surfaces without the need for custom clichés.
• Versatile Shape Handling: Effectively processes round caps, square tubes, and other shaped cosmetic containers within the specified size range.
• Fully Automated Operation: Features an automatic loading system and a streamlined workflow from feed to discharge, minimizing manual intervention.
• Precision Control: Equipped with an imported PLC and user-friendly touchscreen interface for reliable operation, easy setup, and parameter management.
• Compact & Efficient Design: As a single-station machine, it offers a space-saving footprint while delivering high-speed output ideal for focused production lines.
