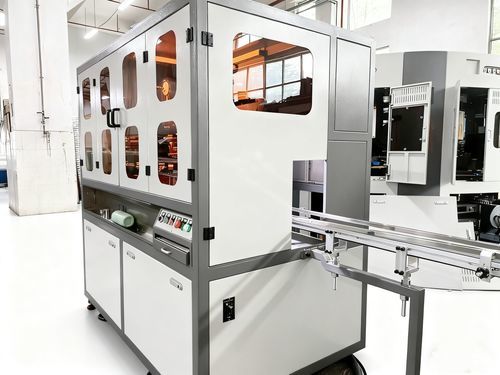

Large print area hot foil stamping machine SZD-CNC102-F

with automatic feedermechanicalcompact

SZD-CNC102-F Automatic Hot Foil Stamping Machine for Complex-Shaped Containers Round Oval Square




Overview
The SZD-CNC102-F is a high-precision automatic hot foil stamping machine, engineered for decorating premium and geometrically complex containers. It expertly handles round, oval, flat, and square shapes—including cosmetic plastic/glass jars and tubes—even those without registration lugs. Designed for applications requiring precise foiling in specific areas or away from parting lines, it ensures elegant, consistent metallic finishes for high-demand products.
Technical Specifications

• Production Speed: Up to 27–35 pieces per minute
• Foiling Area (Round): Diameter 20–100 mm | Length 30–180 mm
• Foiling Area (Square/Irregular): Width 20–100 mm | Length 30–180 mm
• Power Supply: 380V, 3-Phase, 50/60 Hz
• Air Pressure: 6–8 Bar

Core Features & Advantages

• Advanced Registration System: Offers a choice between high-precision mechanical registration or an optional CCD vision system for flawless alignment on featureless surfaces.
• Full Servo-Driven Precision: All critical movements—including pre-registration, multi-axis product positioning, and rotation—are servo-controlled for exceptional accuracy and repeatability.
• Multi-Surface Processing: Capable of applying foil to the full circumference of round objects or to multiple sides of oval and square containers in a single operation.
• Flexible Automated Handling: Features an automatic loading belt (configurable for upright or horizontal orientation) and optional robotic manipulators for post-process handling.
• Rapid Changeover & Easy Operation: Intuitive touchscreen interface allows for quick setup, recipe storage, and automatic parameter setting, minimizing downtime between jobs.
