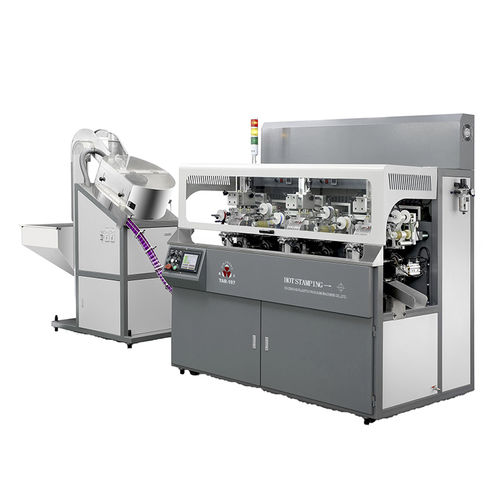

Electro-pneumatic hot foil stamping machine TAR-107

for glass bottlesfor caps

TAR-107 Fully Automatic 3-Color Pneumatic Hot Stamping & Printing Machine
for Plastic Metal Bottle Lids Tubes


Overview
The TAR-107 is a fully automatic, chain-type integrated system that combines multi-color pneumatic hot stamping with screen printing capabilities. It is specifically engineered to deliver high-precision decoration on round objects that lack registration lugs, such as wine caps, vodka closures, pen sleeves, small perfume bottles, jars, and lipstick cases. This versatile machine offers exceptional flexibility, supporting configurations from 2 to 5 colors for dedicated screen printing or hot stamping, or a hybrid process combining both techniques in one seamless operation.
Technical Specifications

• Production Speed: Up to 3,000 pcs/hour (round objects)
• Product Compatibility: Outer Diameter 15–34 mm | Height 20–70 mm
• Utilities:
• Power Supply: 380V AC, 3-Phase, 50Hz, 3 kW
• Compressed Air: 0.6 – 0.8 MPa
• LPG (for flame treatment): 0.15 MPa

Core Features & Advantages

• Integrated Multi-Process Flexibility: Uniquely supports pure screen printing, pure hot stamping, or a combined workflow within a single machine, adapting to diverse and complex decoration needs.
• Precision for Lug-Free Designs: Specialized technology ensures accurate registration on cylindrical surfaces without alignment aids, solving a common production challenge.
• Complete Automated Line: Features automatic loading/unloading, in-line flame treatment for superior adhesion, and UV/LED drying for immediate curing.
• Intelligent & Waste-Free Operation: The No Part, No Print (NPNP) function prevents unnecessary foil or ink consumption, ensuring efficiency and reducing waste.
• Reliable Control System: Equipped with an imported PLC and user-friendly HMI for stable operation, precise control, and easy recipe management.
