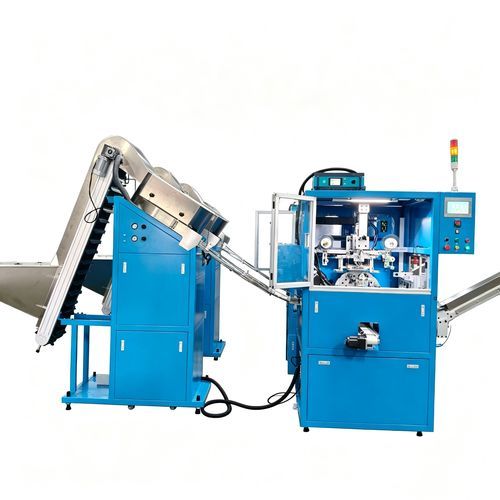

Hot foil stamping machine with automatic feeder TAR-103

for caps

Product Overview
The TAR-103 side-wall hot stamping machine with standalone auto-loader is designed for foil stamping on round closures such as wine bottle caps and spirit closures. It performs lateral stamping of logos, lines and decorative patterns with continuous automated feeding and unloading to support industrial production lines.

Technical Specifications

• Model: TAR-103
• Printing speed: 3,000 – 4,000 pcs/hr
• Printable diameter: 15 – 34 mm
• Printable length: 25 – 60 mm
• Air pressure: 6 – 8 Bar
• Power supply: 380V, 3P, 50/60 Hz, 2.5 kW
• Dimensions (L×W×H): 2300 × 1400 × 2300 mm

Key Features

• Intelligent operation: No Parts No Print (NPNP), low-air-pressure alarm, foil-end alert, automatic surface orientation, and automated loading/unloading to maintain steady throughput.
• Anti-overlap feeding system that prevents double-stacking of caps and reduces jams and rejects.
• Optional surface pretreatment (hot air, plasma, or flame) to improve foil adhesion on different substrates.
• High speed and quick changeover: up to 4,000 pcs/hr; jig change enables fast adaptation to various cap sizes.
• Post-print counting and sorting for automatic separation by batch or quality (good/reject) to streamline packaging and traceability.
• Advanced control: imported PLC with touchscreen HMI for straightforward programming and real-time monitoring.
