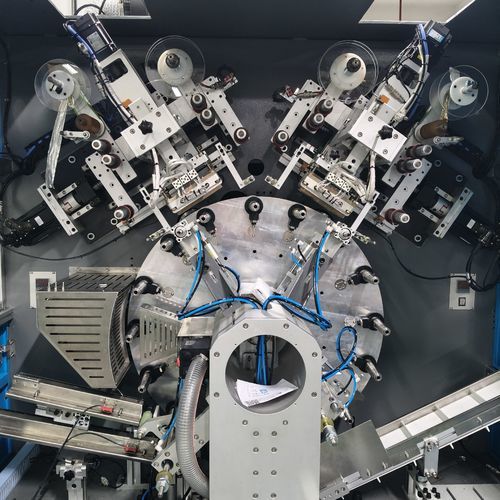

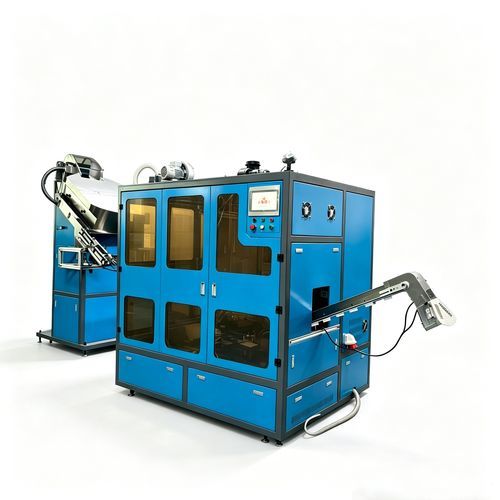

Hot foil stamping machine with automatic feeder TAR-103-AB

for caps

Product overview
The TAR-103-AB is a full servo-driven hot stamping machine designed to stamp two round caps simultaneously (e.g., wine caps, vodka closures) at a stable rate of 100 pcs/min (6,000 pcs/hr). Full servo control and PLC operation ensure precise registration, repeatability and reliable inline integration for high-volume production.

Specifications

• Output: 100 pcs/min (6,000 pcs/hr)
• Cap diameter range: 15–34 mm
• Print length: 25–60 mm
• Air pressure: 6–8 Bar
• Power: 380 V, 3P, 50/60 Hz, 2.5 kW
• Machine dimensions (L×W×H): 3000 × 1400 × 2300 mm

Key Features

• High-speed automatic feeding and stamping — 2 in / 2 out, simultaneous stamping of 2 caps without quality loss
• Fully servo-driven motion control for precise registration and stable performance at maximum speed
• Smart functions: NPNP (no part, no print), low-air alarm, foil-end alert, automatic surface orientation, auto load/unload
• Anti-overlap feeding to prevent cap stacking and jamming
• Optional surface pretreatment: hot air, plasma or flame to improve foil adhesion
• Automatic counting and sorting to separate good parts from rejects or by batch
• Quick changeover with interchangeable jigs for different cap sizes
• PLC with touchscreen for intuitive operation and real-time monitoring

Notes
Built for high-volume production and inline packaging lines.

Technical specifications

• Model: TAR-103-AB
• Function: Hot stamping of round caps (2 caps simultaneously)
• Speed: 100 pcs/min (6,000 pcs/hr)
• Cap diameter: 15–34 mm
• Print length: 25–60 mm
• Air pressure requirement: 6–8 Bar
• Power supply: 380 V, 3P, 50/60 Hz, 2.5 kW
• Dimensions: 3000 × 1400 × 2300 mm
• Control: Full servo system with PLC and touchscreen
• Additional functions: NPNP, low-air alarm, foil-end alert, auto orientation, auto load/unload, anti-overlap feeding, optional surface pretreatment (hot air/plasma/flame), automatic counting and sorting, quick change
