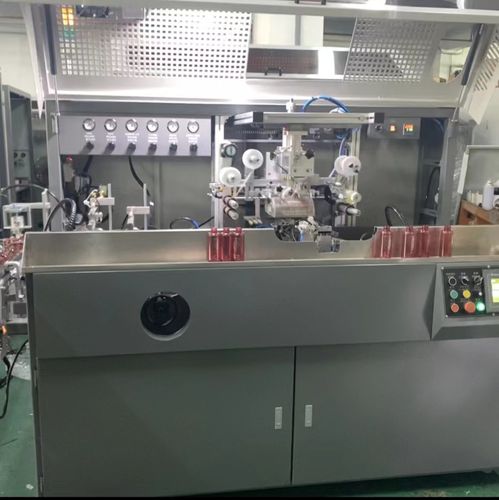

Electro-pneumatic hot foil stamping machine SZD-102-F

for large print areaswith automatic feeder

Modular 1 Color Hot Foil Stamping Machine for Multi-Shape Plastic Containers


Overview
This advanced modular hot foil stamping system is designed for high-quality metallic decoration on a diverse range of containers, including cylindrical, flat, and oval bottles. Its innovative design allows individual units to operate as standalone machines or be seamlessly integrated to form a multi-color production line. Combining a stable transmission structure with rapid changeover capabilities, it delivers flexible, efficient, and premium finishing for a wide variety of packaging needs.
Core Advantage: Modular Scalability
The system’s standout feature is its modularity. Units can be configured independently for single-color foiling or connected in series to create a synchronized multi-color or multi-process (e.g., printing foiling) production line. This provides unmatched flexibility to scale operations and adapt to evolving production requirements.
Technical Specifications

• Printing Capacity & Speed:
• Round Container: Ø 20–100 mm | Length 20–300 mm | Speed: 2,400 – 3,000 pcs/h
• Oval Container: Width 25–120 mm | Length 25–300 mm | Speed: ~2,400 pcs/h
• Square Container: Length 100–200 mm | Width 40–100 mm | Speed: ~2,400 pcs/h
• Machine Dimension (Per Unit): 1908 × 1000 × 1500 mm
• Power Supply: 380V, 3-Phase, 50/60 Hz
• Air Supply: 5 – 7 bar

Key Features

• Modular & Connected Operation: Functions perfectly as a standalone foil stamper or integrates with screen printing machines to create a versatile, multi-color decorating line.
• Complete Automation: Features automatic loading/offloading, with an optional hopper for round bottles. Includes auto flame treatment and surface orientation for optimal foil adhesion.
• Multi-Surface Processing: Equipped with an automatic 180-degree rotation mechanism for oval and square bottles, enabling precise foil application on multiple sides.
• Stable High-Speed Performance: Robust transmission system ensures smooth, fast container handling and consistent output.
• User-Friendly Control: Managed by a reliable Delta PLC and intuitive HMI for easy setup, recipe management, and quick changeovers.

Typical Applications
Ideal for applying metallic finishes to premium packaging such as detergent bottles, shower gel containers, shampoo bottles, and various daily cosmetic and consumer goods containers.
