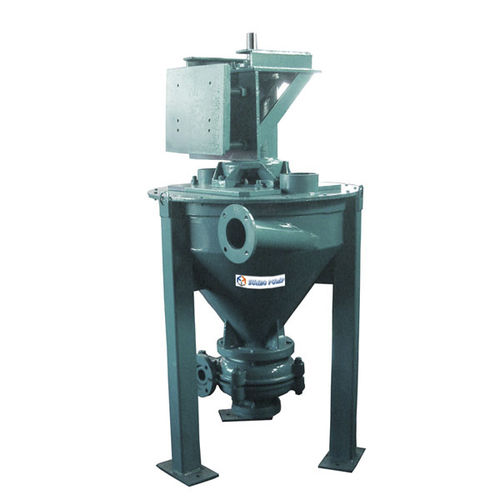

Centrifugal pump SF series slurryfor the mining industryfroth
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- slurry
- Domain
- for the mining industry
- Fluid specification
- froth, for abrasive fluids, for corrosive fluids
- Other characteristics
- heavy-duty, vertical, with free shaft
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 300 m³/h
(10,594.40002 ft³/h)- Head
Min.: 0 m
(0'00" )Max.: 28 m
(91'10" )
Description
The FROTH PUMP is of heavy duty construction, designed for continuous pumping of highly abrasive and corrosive frothy slurries. It has a vertical shaft configuration and comprise a hopper, with vertical Bearing Assembly, and Type 'HS' pump wet-end. It features a wide choice of replaceable abrasion resistant metal or moulded rubber casing liners and impellers.
The type 'SF' Froth Pump is designed to effectively handle frothy slurries by de-aerating the froth, by an induced vortex effect, before it enters the pump impeller.
Features:
◆ Cartridge type Bearing Assembly
◆ Heavy duty screw thread impeller attachment
◆ Through-bolt design throughout
◆ Replaceable casing liners
◆ Choice of range of metal or rubber liners and impellers
◆ Minimum number of casing bolts
Specifications:
◆ Outlet: 2”-6”
◆ Capacity: 0-300m³/h
◆ Head: 0-28m
Applications:
◆ Frothy slurries
◆ Fertilizer Industry
◆ Ore Dressing
◆ Mineral Flotation Plant
◆ Mineral Concentration Processing
